Tohoku University Technology: High-frequency magnetic field measurement-device: T11-125_T12-162
High-frequency magnetic field measurement-method with sub-micron spatial resolution

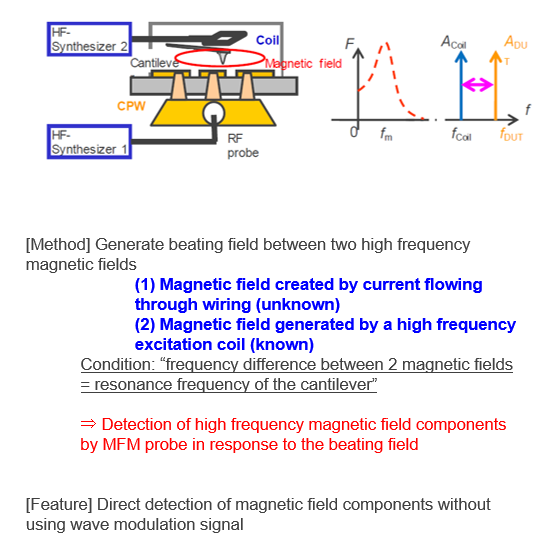

The problem of electromagnetic noise entering to analog circuit from digital circuit in RFICs (Radio Frequency ICs) for portable terminals (smartphone, tablet, etc.) which are capable of ultra high speed GHz class communication, is becoming a serious subject. In order to measure high frequency magnetic field on IC chip,methods with "high spatial resolution" and "GHz measurement frequency" are necessary, but none of the existing high-frequency magnetic field measurement-methods (shielded loop coil type magnetic field probe, magneto-optical probe, giant magnetic resistive sensor, etc.) satisfy these requirements. This invention is about a high-frequency magnetic field measurement-device using a magnetic force microscope (MFM) probe, and the beating field method which uses the field undulation. Specifically, a configuration that enables the separation (removal) of electric field that interferes with magnetic field measurement, and a configuration that modifies the cantilever drive and detection component are added in this invention.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
