Tohoku Univ. Technology : Flexible & Robust Liquid Crystal Displays : T23-063
Liquid crystal device resistant to external pressure

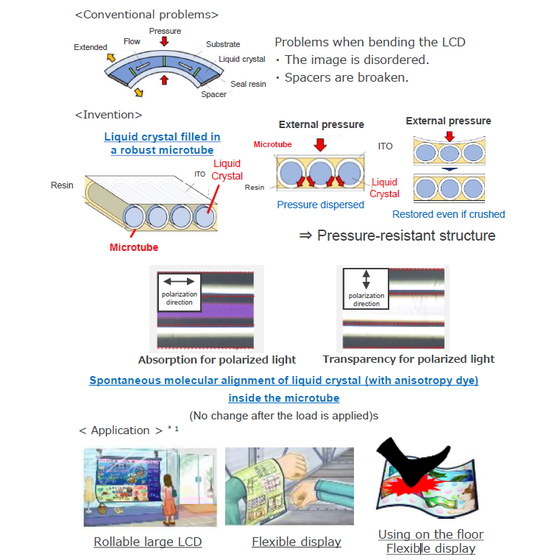

・In a conventional liquid crystal display(LCD), when a large pressure is applied from the outside or a steep bending deformation is forced, the display image is disorderd cause of thickness variation of the liquid crystal layers, and the substrate spacer is damaged. ・Therefore, liquid crystals are difficult to apply to flexible displays because of such problems. ・The invention packs a liquid crystal material into robust microtubes and arranges them in a plurality to form a liquid crystal layer. ・Using such a structure, pressure force can be dispersed even when pressure is applied from the outside. ・It is expected to be applied to a robust and flexibile liquid crystal display.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
