Tohoku Univ/Tohoku Institute of Technology : Transducer, Force Sensor and Sensor Unit : T21-171
Tactile Sensor with a Sense Similar to Humans

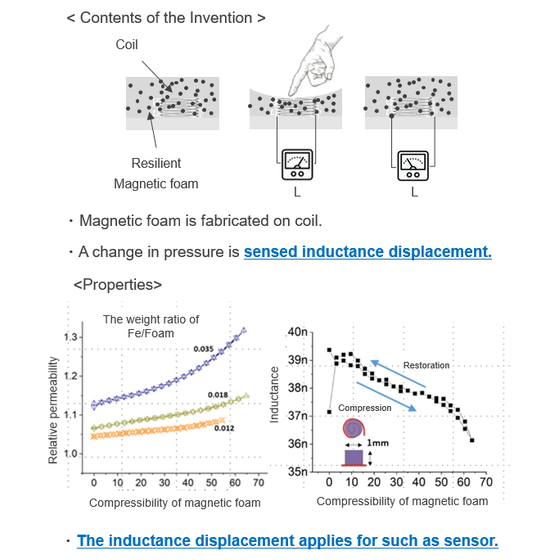

To get robots to do their jobs just like people do, it is important for the robot to install a sensor that can sense the same sense as humans. Conventionally, various types of sensors have been proposed, but they have problems such as a complicated structure and a complicated fabrication process. In the invention, a transducer is fabricated by forming a magnetic foam to cover a coil that provided on an electric substrate. Since the transducer is simple to fabricate and can sense a force from inductance displacement even with a small compressive stress, the invention is expected to solve the above problems.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
