Tohoku Univ. Technology : Device to measure nanoparticle distribution : T24-030
Providing measurement technique that enables real-time observation of nanomaterial behavior

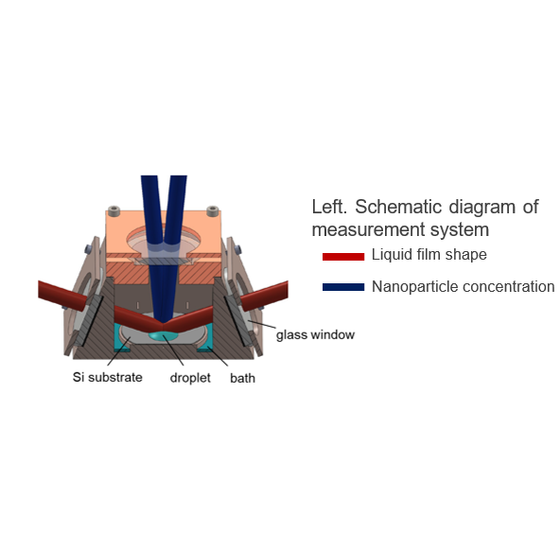

Recently, nanomaterials with innovative functionalities, such as nanofluids (nanoparticle/solvent mixture) and polymer nanocomposite materials (nanoparticle/polymer mixture), have been extensively investigated. These nanomaterials find diverse applications in fields including conductive nano-inks, solar cells, and sensors, and are frequently utilized as thin films. During the coating and thin-film formation processes of nanomaterials on substrates, a technique capable of precisely observing the liquid film shape and the behavior of the contained nanoparticles is essential. The present invention enables the simultaneous measurement of the liquid film shape, including nanofluids (nanoparticle/solvent mixture) and polymer nanocomposite coating solutions (nanoparticle/polymer/solvent mixture), as well as the distribution and concentration of nanoparticles within the liquid film. By integrating this device into a manufacturing line, process monitoring becomes feasible. Furthermore, a mathematical model has been successfully developed to comprehend the behavior of nanofluid droplets on a substrate. (See T24-027).
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
