Hokkaido Univ. Technology : Electrode and control method of Overvoltage : HK24-016
Decrease of overpotential by surface structure

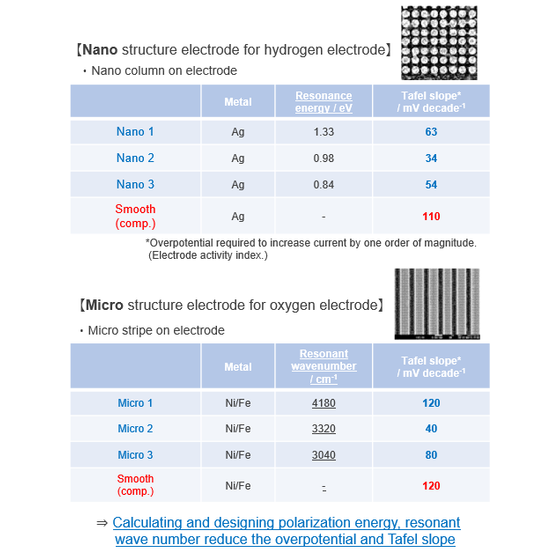

Hydrogen production by water electrolysis has attracted attention in terms of realizing carbon neutrality. However, large overvoltage (= overpotential) is a challenge that causes excessive degradation for the electrode in conventional electrodes. To solve this challenge, optimization of the material composition of the electrode has been advanced, but it is not sufficient. In the invention, as a new electrode design approach, the surface structure of the electrode (nano/micro structure) is calculated and designed in terms of introduction of the interaction with the electronic polarization of chemical reaction intermediates or the vibrational polarization of water molecules in water electrolysis. It can reduce the overpotential and Tafel slope by applying above method successfully. The invention enables water electrolysis with low overpotential, and is expected to reduce power consumption and extend the life of the electrode.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
