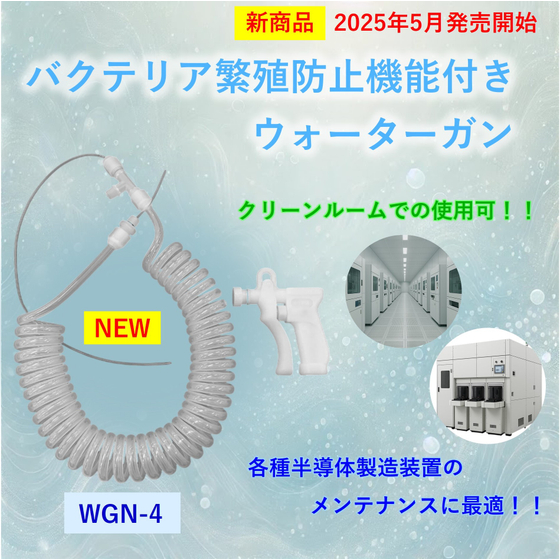

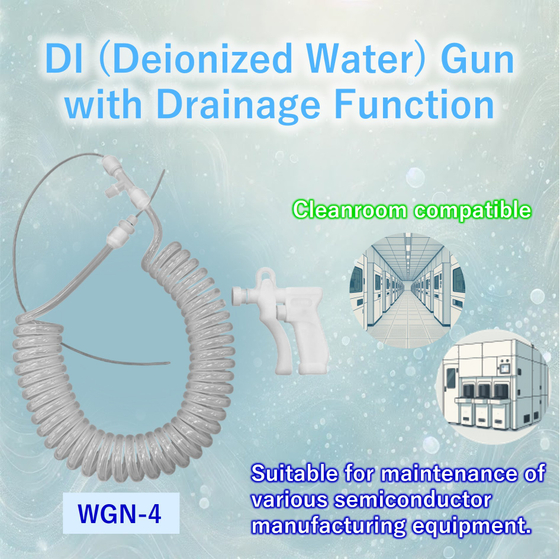

【New Product Scheduled for Release in May 2025】 Water Gun with Anti-Backflow Function
WGN-4
Pure water cleaning gun equipped with anti-retention function!! Prevents cloudy water discharge caused by bacterial growth!!
This is a pure water cleaning gun that can be used primarily for maintenance purposes in semiconductor manufacturing equipment and is suitable for use in clean rooms. ■ Equipped with a stagnation prevention function to prevent bacterial growth during long periods of non-use. When the gun is not in use, residual water in the gun body and hose is drained from the built-in inner tube, preventing the outflow of turbid water caused by bacterial growth. ■ Lightweight design reduces the burden on operators. The coil hose is lightweight and easy to handle during work, allowing for comfortable operation. It also has excellent storage capability when not in use. ■ Usable in clean rooms. It is a non-oil product that does not use grease. ■ Stable supply is possible. Made from general-purpose resin (PP) and produced domestically, it allows for continuous and stable supply. ★ For information on air blow guns that can be used for blowing off moisture, access the link below: https://mono.ipros.com/product/detail/159520001 ★ For information on medical gun products, access the link below: https://www.kitzmf.com/medical/
Inquire About This Product
Related Videos
basic information
■Product Information Model: WGN-4 Operating Temperature Range: 5 to 40°C Maximum Operating Pressure: 0.4MPa Usable Range: 2,400mm Weight: 340g ■Material Gun Body: Polypropylene O-Ring: FKM Coil Hose: Polypropylene Inner Tube: Polypropylene ■Size Coil Hose Dimensions (Outer Diameter / Inner Diameter) φ10 / φ6.5 Inner Tube Diameter (Outer Diameter / Inner Diameter) φ3 / φ1.5 Pure Water Inlet Connection Diameter: R1/4 Inner Tube Length (Cheese / Tube End 410mm)
Price range
P2
Delivery Time
※Delivery dates may vary depending on quantity and order status.
Applications/Examples of results
■Semiconductors Maintenance of semiconductor manufacturing equipment Cleaning of silicon wafers, quartz tubes, glass substrates, and electronic components ■Physical and Chemical Maintenance of clean benches and draft chambers Cleaning of pure water and chemical tanks ■Medical Cleaning of medical instruments and medical sinks
Line up（1）
| Model number | overview |
|---|---|
| WGN-4 | Set product with a gun and a coil hose (with anti-retention function included) |
