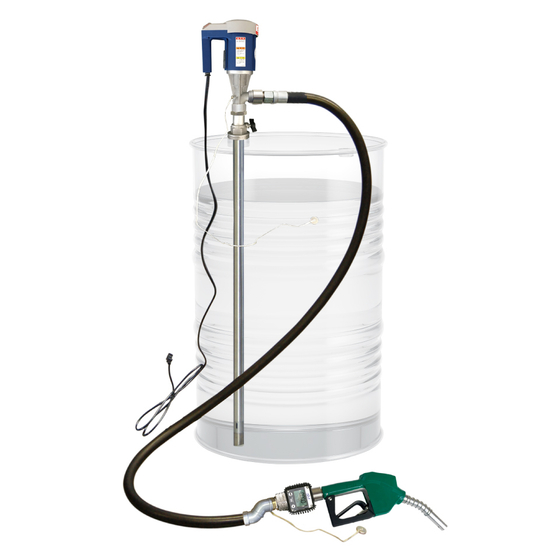

Integrated flow meter electric drum pump TDP1-ATNK24
TDP1-ATNK24
Essential for fuel-saving measures! Electric drum pump with full-stop function.
Measuring and stopping are standard! Cost reduction through usage management! 《TDP1 Series (for kerosene and light oil)》 TDP1K24-ATN (for kerosene and light oil / with main unit TB-K24-FM) TDP1-ATNK24 (for kerosene and light oil / with nozzle TB-K24-FM) TDP1M33-ATN (for kerosene and light oil / with main unit MK33-25D) TDP1-ATN (for kerosene and light oil) ◎ Integrated flow meter You can choose from three types with flow meters: TDP1K24-ATN, TDP1-ATNK24, and TDP1M33-ATN, depending on your application. There is also a type without a flow meter, allowing for economical use of kerosene drum pumps. ◎ Electric type for kerosene and light oil with auto-stop gun preset Automatically stops discharge when the liquid is full! This prevents overflow. ◎ Improvement in liquid management With the flow meter, the flow rate can be easily seen, eliminating waste and leading to cost reduction. ◎ Continuous operation possible Operable continuously with 100V electric power, making it usable anywhere. This also improves work efficiency.
Inquire About This Product
basic information
Model: TDP1K24-ATN / TDP1-ATNK24 / TDP1M33-ATN / TDP1-ATN Compatible Container: 200L Closed Drum Liquid Used: Kerosene / Light Oil Usable Viscosity (cP): 100 Power Supply (V): 100 Current (A): 2 Rated (min): Continuous Operation Possible Discharge Pressure (Mpa): 0.04 Maximum Discharge Volume (1cP/L/min): 20 Maximum Lift Height (m): 2 Maximum Suction Height (m): 2 <Accessories> Nozzle: Auto Stop Gun Nozzle (ATNH-20) Hose Material (Inner Diameter × Length): Oil-resistant Rubber Hose (φ20×2m) <Flow Meter> TDP1K24-ATN: Turbine (LCD Digital Display) TB-K24-FM (Body Side) TTDP1-ATNK24: Turbine (LCD Digital Display) TB-K24-FM (Nozzle Side) TDP1M33-ATN: Disk (Mechanical Digital Display) MK33-25D (Body Side) <Contact Parts Material> Body: AL/SUS/ETFE/PTFE Packing: NBR <Weight (kg)> TDP1K24-ATN, TDP1-ATNK24: 6.3 TDP1M33-ATN: 7.4 TDP1-ATN: 5.9
Price range
Delivery Time
Applications/Examples of results
**Merits** - A high-efficiency pump that can draw up a 200-liter drum in about 10 minutes, despite the tendency for flow rate to drop when using an auto-stop nozzle. - Usable for tractors and combines that run on diesel fuel. - An electric drum pump that is easy to use—just turn on the switch. **Features** - Designed specifically for JIS standard 200L closed drums (large cap G2). - Suitable for transferring low-viscosity fuels such as kerosene and diesel. - Available in three types with flow meter attachment, as well as options without a flow meter. - A convenient drum pump for home use with AC-100V power supply. - Capable of continuous operation.
Detailed information
-
TDP1K24-ATN
-
TDP1-ATNK24
-
TDP1M33-ATN
-
TDP1-ATN
catalog（6）
Download All Catalogs![[Drawing] Flow Meter Auto Stop Gun Nozzle Drum Pump for Kerosene and Light Oil TDP1-ATNK24](https://image.mono.ipros.com/public/catalog/image/726172/IPROS14318538390294214919.jpeg?w=120&h=170)
![[Instruction Manual] Auto Stop Gun TDP1-ATN Series](https://image.mono.ipros.com/public/catalog/image/01/0a1/726331/IPROS50028476560369717865.jpeg?w=120&h=170)
![[Instruction Manual] Electric Drum Pump for Kerosene and Light Oil TDP1 Series](https://image.mono.ipros.com/public/catalog/image/01/1ea/751320/IPROS00776451526163935160.jpeg?w=120&h=170)
