Tohoku Univ. Technology: Liquid Crystal Reflect Arrays for Electromagnetic Wave : T23-078
LC device eliminates coverage hole in millimeter wave communication

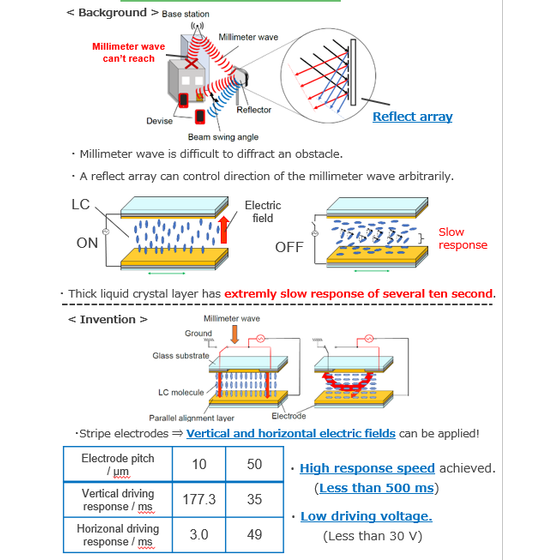

・ At millimeter wave communication, there is a concern about increasing coverage hole which is area where the communication becomes impossible. ・ Therefore, installing the reflect array for all over city that can control the direction of electromagnetic wave is proposed. ・ A conventional reflect array composed of liquid crystal (LC) has problem of slow response. ・ In the invention, reduction of response time is achieved by forming a stripe electrode on substrate which can be applied vertical and horizonal electric field. ・ The invention is not only expected to apply for reflect arrays, but also phase modulators and phased array antennas.
Inquire About This Product
basic information
For more details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
