Observation of structural changes in metallic materials through tensile testing using in situ X-ray CT.
Capable of evaluating three-dimensional structural changes according to tensile stress.

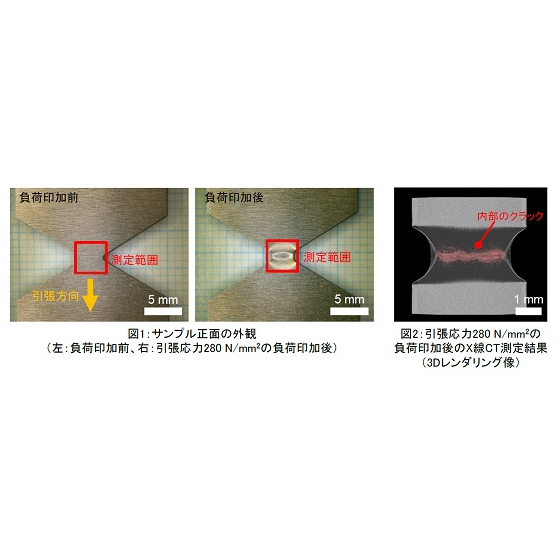

In situ X-ray CT measurements allow for internal structure analysis under conditions where a load (tension or compression) is applied to the sample. In this document, in situ X-ray CT measurements were conducted using an aluminum plate as the sample, both in its normal state and in an extended state. We calculated the tensile stress applied to the sample and monitored the internal structural changes under each stress condition. By combining in situ X-ray CT measurements with image analysis technology, it is possible to evaluate under actual usage conditions, which was previously difficult, and assess the impact of stress on the product.
Inquire About This Product
basic information
Measurement Method: Others Product Field: Manufacturing Equipment and Parts, Daily Necessities, Others Analysis Purpose: Shape Evaluation, Structural Evaluation, Stress and Strain Evaluation, Failure Analysis and Defect Analysis, Deterioration Investigation and Reliability Evaluation, Product Investigation
Price range
Delivery Time
Applications/Examples of results
Analysis of manufacturing equipment, components, and daily necessities.
catalog（1）
Download All Catalogs![[Analysis Case] Observation of Structural Changes in Metal Materials through Tensile Testing Using In Situ X-ray CT_C0649](https://image.mono.ipros.com/public/catalog/image/01/fe0/583611/IPROS67763427216311278102.jpeg?w=120&h=170)
Company information
MST is a foundation that provides contract analysis services. We possess various analytical instruments such as TEM, SIMS, and XRD to meet your analysis needs. Our knowledgeable sales representatives will propose appropriate analysis plans. We are also available for consultations at your company, of course. We have obtained ISO 9001 and ISO 27001 certifications. Please feel free to consult us for product development, identifying causes of defects, and patent investigations! MST will guide you to solutions for your "troubles"!
