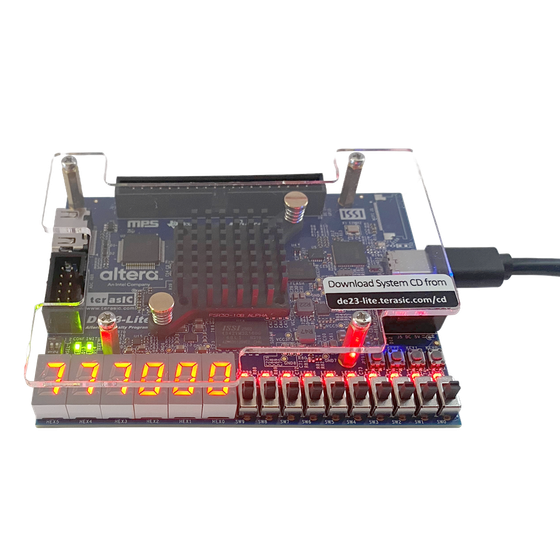

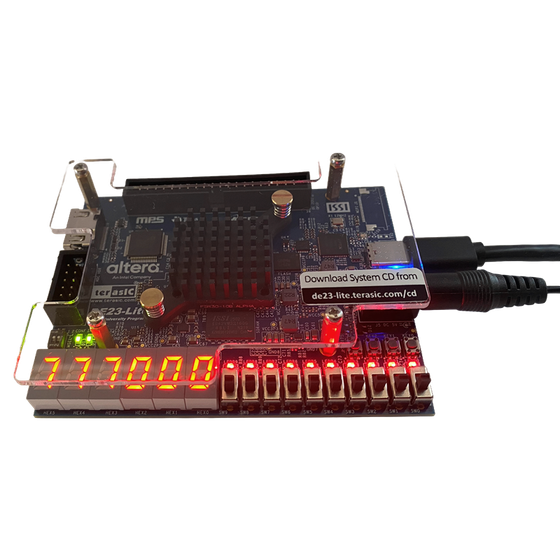

DE23-Lite
DE23-Lite is a Agilex 3 C board for development and education. Tateno Dennou,Inc. ( https://dsp-tdi.com ) is the distributor for academic version in Japan.
Inquire About This Product
basic information
DE23-Lite Model: P0807 FPGA Agilex 3 C A3CZ135BB18AE7S LE:135,110, internalRAM:6.89Mb(M20K), MLAB:1.4Mb, Multiplier(18x19):368 externalDRAM64MB SDRAM(32bit) Config Flash128Mb QSPI A/V out HDMI (ADV7513) UARTUSB-UART GPIO Bus(2x20pin) 36 I/O(3.3V) A/D port2x5 header(12bit 8ch) User LED10 7-Seg LED6 Push SW4 Slide SW10 USB BlasterUSB Blaster III Power DC-in or Type-C size 98 x 75mm Sales in Japan : Tateno Dennou,Inc. https://dsp-tdi.com
Price information
In Japan, Tateno Dennou,Inc. (https://dsp-tdi.com) is the distrbutor for Academic and companies.
Delivery Time
Applications/Examples of results
DE23-Lite is a suitable FPGA board from the first class of logic design to computer architechture,embedded system traning.
Detailed information
-
DE23-Lite with LT24 LCD/touchpanel board
-
DE23-Lite with D9M 8M pixel camera board
-
DE23-Lite with SMK servo Motor Kit
