One machine for right angle and 45-degree cutting! Two-head aluminum cutting machine.

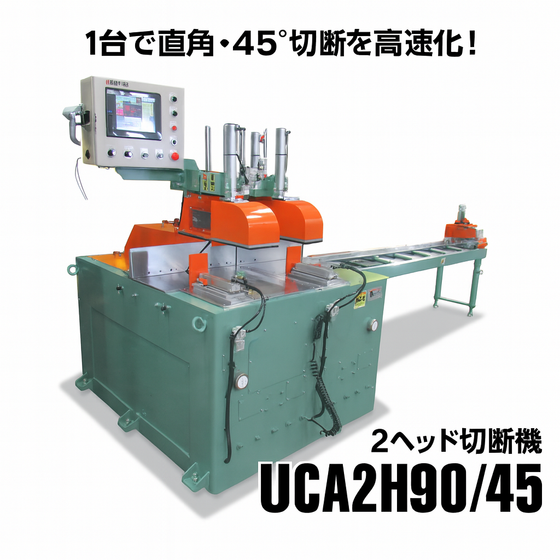

Undercut T-shirt type UCA2H90/45
A space-saving multi-functional machining center that balances cutting quality and work efficiency.
The quality required for cutting is becoming more advanced every day. Additionally, with the reduction of workspace, there is a strong demand for compact machine dimensions. The UCA2H90/45 is a space-saving combined processing machine that handles two processes: straight cutting of aluminum profiles and 45° inclined cutting, all in one unit. It integrates years of expertise in cutting machines with the latest aluminum profile cutting technology, achieving high productivity and stable quality at a high level. Furthermore, by adopting upper clamps positioned on both sides of the cutting tool and two horizontal clamps, it balances safety and workability. This machine will greatly contribute to future high-efficiency production.
Inquire About This Product
basic information
【Specifications】 ◇Blade diameter (mm): 510, 2 pieces ◇Cutting width (mm): 300 ◇Cutting height - perpendicular axis (mm): 145 ◇Cutting height - 45-degree axis (mm): 110 ◇Main spindle motor: 2.2 kW × 2P, 2 units ◇Main spindle speed: 3000 rpm (50Hz) / 3600 rpm (60Hz) (■Inverter variable speed - optional) ◇Main spindle drive: Ball screw feed
Price range
Delivery Time
Applications/Examples of results
【Achievements】 ■Cuttable Materials - Aluminum frame profiles, wood, plastic profiles, etc. ■Applications - Straight cuts of the above materials, diagonal cuts due to axis inclination.
Line up（1）
| Model number | overview |
|---|---|
| UCA2H90/45 | Diameter of the chip saw (mm): 510, 2 pieces |
catalog（1）
Download All Catalogs
Company information
Okumura Machinery Manufacturing Co., Ltd. was founded in Takamatsu City in 1952. We began manufacturing woodworking machines in 1965 and consistently focused on aluminum profile cutting in the 1970s, achieving success in this area. By focusing on the goal of ensuring and improving our customers' productivity, we became a market leader in aluminum cutting machine manufacturing. With a product range of over 100 items, we can meet various customer needs. Additionally, our semi-custom machine designs allow us to provide products tailored to various fields and company sizes. Our domestic product range, which exceeds 6,000 units, speaks to our capabilities. However, what we take particular pride in is that we have remained a grounded company that embodies the values of small and medium-sized enterprises, such as quality, flexibility, individuality, reliability, and closeness to our customers. One indicator of the superior quality of our products is their longevity, with many of our products being used for over 30 years. Our goal is to develop perfect products for our customers. We look forward to being your partner in providing products and services that understand and meet your needs at Okumura Machinery Manufacturing Co., Ltd.
