Hand-blown spray man compatible painting oil booth TB42-20B
The TB42-20B is a hand-spray compatible oil booth. It raises the oil pan to a convenient height, making it ideal for hand-spray work. The total height is approximately 3,400mm, with an opening width of 4,200mm. It is also equipped with hood lighting. The size can be adjusted according to the work requirements. It uses high-purity mineral oil for the cleaning solution. The low-profile design allows for conversation even in front of the booth. The cleaning solution includes oil (TAKBO OIL), making it resistant to rust and providing a long lifespan of about 30 years. ● Approximately 63dB low noise design ● Dust removal efficiency of about 95% ● Approximately 30 years of longevity ● Oil is used in the cleaning solution ● Oil can be used semi-permanently (in cases of paint sludge recovery)
Inquire About This Product
basic information
[Specifications Example] Oil Booth TB42-20B for Hand Spraying Exhaust Fan: Axial Type Oil Pump: Scroll Pump Oil Capacity: 1,860ℓ Lighting: Explosion-Proof Fluorescent Light Standard Control Air Velocity of the Hood: 0.5 to 0.6 m/sec Pressure Loss of the Booth: 1.32 hPa Pressure Loss of the Exhaust Duct: 2.81 hPa
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
Purpose: Dedicated painting booth (may not be suitable for certain types of paint such as powder coatings. Please inquire.) Track Record: Numerous applications including resin-based paints, baked paints, UV paints, etc.
Detailed information
-
A long-lasting booster with a lifespan of about 30 years.
-
Manometer (op): It detects the pressure inside the booth and monitors for blockages and other issues.
-

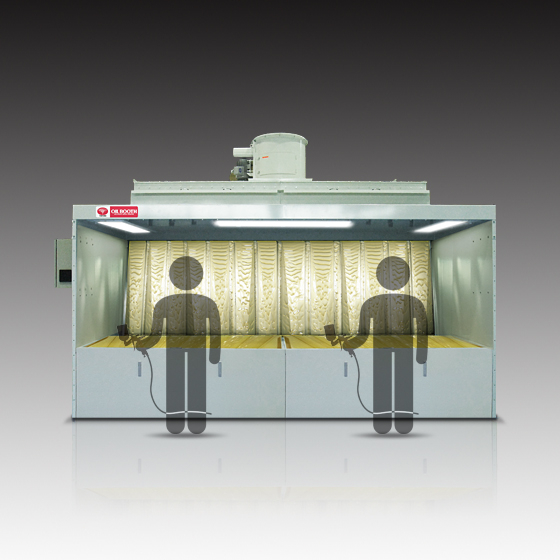

Design for two people
-
Installation of partition board OP
-
Lattice window
-
Single-person specification, size designed flexibly according to workability.
-
The size can be freely designed according to workability.
-
The size can be freely designed to suit workability.
-
Sludge is semi-automatically separated and collected using a centrifuge. The separated sludge can be extracted in solid or semi-solid form. The oil is returned to the booth.
Line up（1）
| Model number | overview |
|---|---|
| TB42-20B | Hand-blown oil booth |
catalog（2）
Download All Catalogs
News about this product（1）
Company information
Takubo Engineering has established technology in painting and is independently developing a painting system that reduces running costs and enhances profit effectiveness. We are developing solutions to meet the demands of improving quality, lowering painting costs, and increasing profits comprehensively and simultaneously. Thinking because it does not exist in the world Takubo Engineering independently thinks of systems that meet the needs of painting management because there are none available. We are also pursuing better ways of painting systems. ◎ We independently develop and sell painting-specific robots and painting systems. In addition to the hanging mobile explosion-proof line dancer, we have newly added a self-standing explosion-proof swan robot to our lineup. ◎ Main products: Explosion-proof painting robots: Line dancer, Swan Hot air drying furnace: Dry Tech Painting booth: Oil Booth Conveyor line: Dragon Line Explosion-proof paint supply system: Syringe pump system Automatic spray gun: Scotch Gun Small explosion-proof AC servo motor Hose-less robot IH drying system Clean room dedicated to painting Special ceramics paint UV painting system, drying system, and other painting systems
