[Live Demonstration at Makuhari] High Coating New Type Air Mix Explosion-Proof Collaborative Robot Painting System
From September 30, the Shark AVX Pro spray gun and 20C50 pump will debut at Coating Japan Tokyo as an easy robotic painting set.
FANUC's explosion-proof collaborative robot achieves low-risk automation of painting with the flexibility of a spray gun through direct teaching!
Modern manufacturing is facing urgent challenges, particularly in the painting industry, due to intensified global competition and strengthened environmental regulations, as well as a declining workforce population caused by an aging society, issues of technology transfer due to the retirement of skilled technicians, and the need to adapt to small-lot, diverse production. In this context, in order to stably supply high-quality products while improving production efficiency and operating as a sustainable business, the introduction of automation technology has become more essential than ever. We recommend the "Explosion-Proof Collaborative Robot Painting System," which combines an air mix painting gun and explosion-proof collaborative robots, as an innovative automation solution that comprehensively addresses these challenges and brings new value to the painting field. The air mix painting gun used in this set achieves a coating efficiency of 86%, equivalent to that of electrostatic guns, despite being non-electrostatic. Additionally, the flexibility of the gun itself provides correction capabilities for direct teaching, significantly reducing paint misses. Furthermore, it shortens painting time and enables stable painting. You can download a PDF document that explains the technical features and benefits of implementation in detail. For more information, please feel free to contact us.
Inquire About This Product
Related Videos
basic information
Painting Machine: Sames AVX PRO Air Mix Gun (Output 70cc〜) High-Pressure Paint Pump: Sames 20C50 (Max Supply 1.5ℓ/min, Compatible with Low to High Viscosity) Explosion-Proof Collaborative Robot: Fanuc CRX-10iA/L Paint Auxiliary Equipment: Output Adjuster, Air Control Unit, Collaborative Robot Cart (with Outriggers) Compatible Materials: Water-Based and Solvent Paints, Metallic and Zinc Paints, Abrasives, Release Agents Options: Various Work Conveyors, Automatic Rotating Table *Customization available to meet your requirements. Equipment Utilities: [Power Supply] Single Phase 100V〜200V *Standard Specification [Dry Clean Air] 0.5Mpa〜0.6Mpa
Price range
Delivery Time
Applications/Examples of results
From thin film coatings to thick film coatings for metals, woodworking, resins, etc. Metallic coatings are also available.
Detailed information
-
Features of Air Mix Spray
-

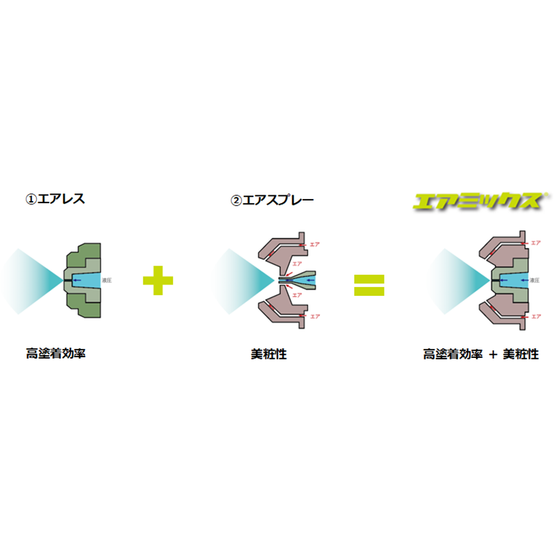

The principle of air mix spray.
-
Energy-saving effects of air mix play.
-
Uniform film thickness of air mix spray
catalog（11）
Download All Catalogs
News about this product（1）
Company information
Sames is a global comprehensive painting equipment manufacturer based in France, offering six product ranges: air spray, airless, air mix, powder, electrostatic painting, and high viscosity. The painting market in Europe and the United States is particularly strict regarding environmental regulations, with restrictions on the use of solvents, paints, and other materials. Our painting equipment, developed in such markets, is designed with a strong focus on reducing paint waste, incorporating unique designs and technologies that deliver high paint application efficiency and painting guns. At the same time, we emphasize maintainability and focus on reducing running costs. By providing such painting equipment, we propose lifetime cost reductions for our customers and contribute to enhancing the competitiveness of their products.
