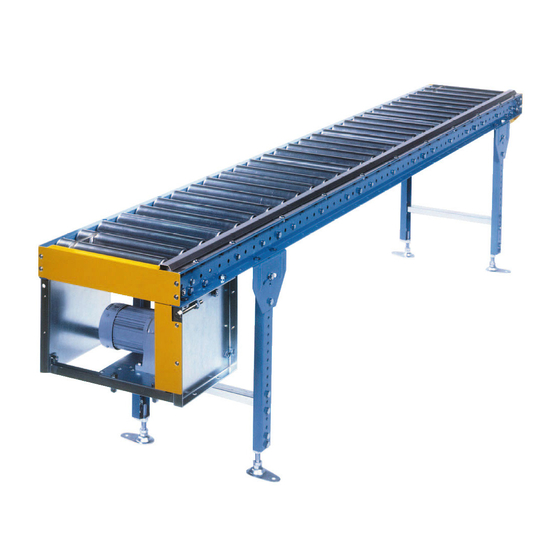

Chain-driven roller conveyor MCC1S
Multi-Belt Series - Conveyor units that can flexibly adapt to various logistics lines.
Lightweight frame for easy handling! Chain-driven roller conveyor with a resin sprocket that excels in quietness.
This is a chain-driven roller conveyor that uses resin sprockets and resin chain rails. It features a frame height of 90 mm, making it lighter. 【Main Specifications】 - Reference transport mass: 68 kg/m (distributed load) - Length: 120 to 1500 cm - Frame: [ 90×30×3.2 - Nominal width: 400 to 1000 mm
Inquire About This Product
basic information
【Features】 - Uses resin sprockets and resin chain rails - Lightweight frame for easy handling - Optimal performance for medium load transport 【Other Specifications】 - Roller diameter: φ57 mm - Angles: 30°, 45°, 60°, 90° - Motor output: 0.2 kW, 0.4 kW, 0.75 kW - Minimum height: 450 mm (drive unit) *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Addressing all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can meet all logistics needs from transportation to palletizing. ■Benefits of line configuration The flagship model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations of units. Additionally, there is a lineup of free roller conveyors that transport without power, which are easy to use, cost-effective, and help reduce labor in various tasks. ■Driven roller conveyor The driven rollers powered by motors feature inexpensive and simple accumulation with round belt drive. Chain drive uses rollers with sprockets driven by chains. Flat and V-belt drives are suitable for high-speed and quiet transportation. Adjacent roller drive uses motors or motor rollers to drive the rollers. Motor roller drive operates by the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the transportation form.
