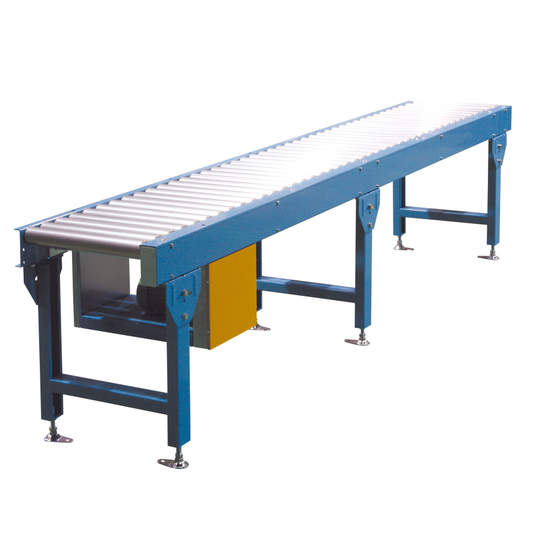

Chain-driven roller conveyor MCC1H
Multi-Beya Series - Conveyor units that can flexibly adapt to various logistics lines.
Low noise and strong against medium loads! Chain-driven roller conveyor with resin sprockets.
This is a chain-driven roller conveyor using resin sprockets. It achieves low noise and is suitable for medium load transportation. 【Main Specifications】 - Reference transport mass: 68 kg/m (distributed load) - Length: 120 to 1500 cm - Frame: [ 125×30×3.2 (straight), [ 120×30×3.2 (curve) - Nominal width: 400 to 1000 mm
Inquire About This Product
basic information
【Features】 - Low noise achieved with resin sprocket - Robust design suitable for medium load transport - Flexible structure compatible with both straight and curved paths 【Other Specifications】 - Roller diameter: φ57 mm - Angles: 30°, 45°, 60°, 90° - Motor output: 0.2 kW, 0.4 kW, 0.75 kW - Minimum height: 440 mm (drive unit) *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Meeting all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can accommodate all logistics needs from transportation to palletizing. ■Benefits of line configuration The flagship model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations of units. Additionally, there is a lineup of free roller conveyors that transport without using power. They are easy to use, cost-effective, and help reduce labor in various tasks. ■Driven roller conveyor The driven rollers powered by a motor feature inexpensive and simple accumulation with round belt drive. There is chain drive that powers rollers with sprockets via a chain. Flat and V-belt drives are suitable for high-speed, quiet transportation. Adjacent roller drive powers rollers with a motor or motor roller. Motor roller drive operates through the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the form of conveyance.
catalog（2）
Download All Catalogs
Company information
Maruyasu Machinery is a machinery manufacturer that specializes in conveying equipment such as conveyors, as well as various automation and labor-saving machines. Through solving challenges related to "transportation," we contribute to automation, labor reduction, and energy conservation across a wide range of industries. We have adapted to any form of transportation that moves from right to left or top to bottom, handling all types of transported items including food trays, carton cases, plastic containers, and pallets. In addition to providing versatile standardized products (standard products), we have focused on offering products tailored to the individual needs of our customers. After 70 years since our founding, we will continue to dedicate ourselves to providing even more original products and services to overcome the challenging economic environment.
