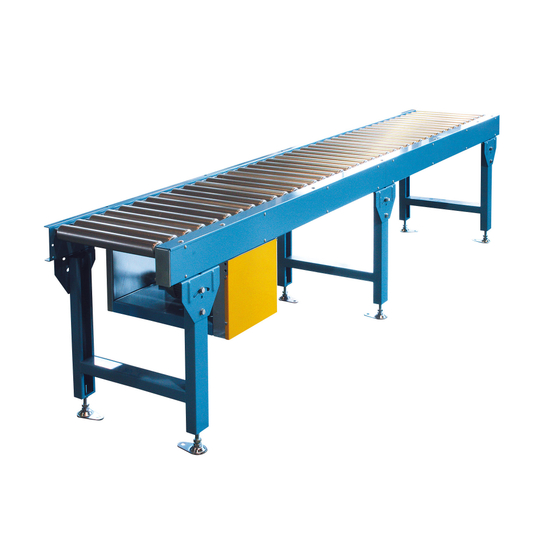

Chain-driven accumulation roller conveyor MCC4H
Multi-Beya Series - Conveyor units that can flexibly adapt to various logistics lines.
Equipped with durable steel sprockets! Chain-driven accumulation conveyor strong in accumulation transport.
This is a powerful type of chain-driven accumulation roller conveyor that uses steel for Laura's sprocket. 【Main Specifications】 - Reference transport mass: 61 kg/m (distributed load) - Length: 120 to 1000 cm - Frame: [125×30×3.2 - Nominal width: 400 to 1000 mm
Inquire About This Product
basic information
【Features】 - High strength achieved with steel sprockets - Efficiency through accumulation function - Flexible adaptation to a wide range of layouts 【Other Specifications】 - Roller diameter: φ57 mm - Angles: 30°, 45°, 60°, 90° - Motor output: 0.2 kW, 0.4 kW, 0.75 kW - Minimum height: 440 mm (drive unit) *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Meeting all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can accommodate all logistics needs from transportation to palletizing. ■Benefits of line configuration The flagship model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations of units. Additionally, a free roller conveyor that operates without power is also available in the lineup. It is easy to use, cost-effective, and helps reduce labor in various tasks. ■Driven roller conveyor The driven rollers powered by a motor feature a round belt drive that allows for inexpensive and simple accumulation. There is also a chain drive that powers rollers with sprockets via a chain. Flat and V-belt drives are suitable for high-speed and quiet transportation. Adjacent roller drives powered by a motor or motor roller drive the rollers. The motor roller drive operates through the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the form of conveyance.
