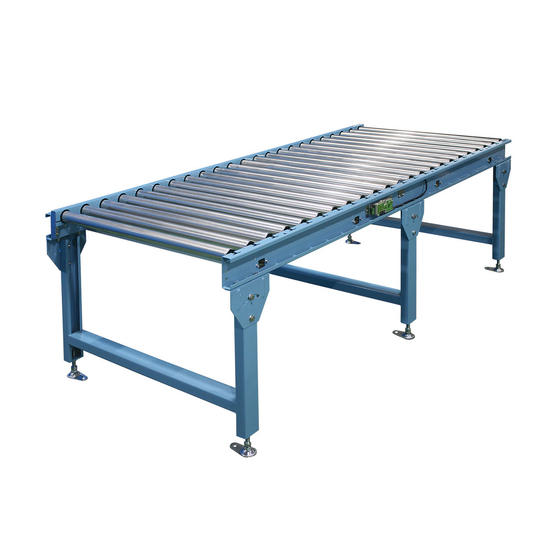

Zone Control Motor Roller Conveyor MEM
Multi-Belt Series - Conveyor units that can flexibly adapt to various logistics lines.
Automatic control by zone! Motorola conveyor that balances efficiency and safety.
Electric control DC motor roller conveyor suitable for logistics transportation sites. Depending on the driver selection, continuous operation and zero pressure operation (with or without control) are possible, making it a conveyor that excels in safety and operability. 【Main Specifications】 - Recommended transport mass: 50 kg/buffer - Length: 60–300 cm - Frame: [110×40×15×2.3 - Nominal width: 400–1000 mm
Inquire About This Product
basic information
【Features】 - Energy-saving and efficient operation through zone control - Compatible with zero-pressure conveying - Balancing safety and maintainability 【Other Specifications】 - Length (Straight): 60–300 mm - Angle (Curve): 30°, 45°, 60°, 90° - Minimum height (Drive unit): 120 mm (Straight), 192 mm (Curve) - Roller: φ48.6 mm (Straight), φ47.3 mm (Curve) *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■ Responding to all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can accommodate all logistics needs from transportation to palletizing. ■ Benefits of line configuration The flagship model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations of units. Additionally, there is a lineup of free roller conveyors that transport without using power. They are easy to use, cost-effective, and contribute to labor-saving in various tasks. ■ Driven roller conveyor The driven rollers powered by a motor feature inexpensive and simple accumulation with round belt drive. Chain drive uses rollers with sprockets driven by a chain. Flat and V-belt drives are suitable for high-speed and quiet transportation. Adjacent roller drive uses a motor or motor roller to drive the rollers. Motor roller drive operates by the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the form of conveyance.
catalog（2）
Download All Catalogs
Company information
Maruyasu Machinery is a machinery manufacturer that specializes in conveying equipment such as conveyors, as well as various automation and labor-saving machines. Through solving challenges related to "transportation," we contribute to automation, labor reduction, and energy conservation across a wide range of industries. We have adapted to any form of transportation that moves from right to left or top to bottom, handling all types of transported items including food trays, carton cases, plastic containers, and pallets. In addition to providing versatile standardized products (standard products), we have focused on offering products tailored to the individual needs of our customers. After 70 years since our founding, we will continue to dedicate ourselves to providing even more original products and services to overcome the challenging economic environment.
