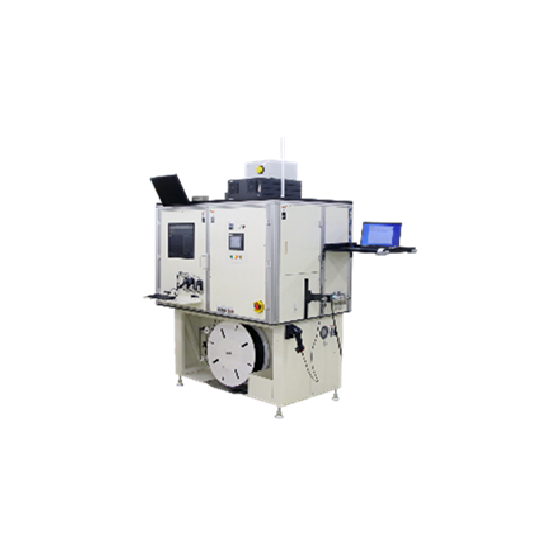

High-speed inspection taping machine compatible with inspection mechanisms required for LEDs.
<Overview> This machine is a taping machine that can accommodate various inspections by combining a nozzle-type first index and a disk-type second index. <Features> - Second Index The disk-type index allows for the processing of surface inspections of workpieces, such as precise optical inspections of LEDs, while maintaining processing speed. - Classification Function (Optional) It is possible to classify workpieces based on various inspection results, such as optical and appearance inspections (up to 6 classifications). - Automatic Repair Function The machine performs posture and appearance inspections of workpieces stored in the tape, automatically ejecting defective workpieces and reinserting good ones, eliminating the need for operator repair work and enhancing productivity. - 5-Surface Inspection (Optional) By adopting a detachable inspection unit, it can simultaneously conduct appearance inspections of five surfaces, including the side and bottom of the workpiece, at one station.
Inquire About This Product
basic information
Corresponding Work: LED (Chip Type) Sensor Work Supply Method: Parts Feeder Tape Width: 8 or 12mm Sealing Method: Thermo Compression Capacity: 300 pieces/min (varies depending on conditions) Device Dimensions: 1250×750×2200 mm Device Weight: 550 kg
Price range
Delivery Time
Applications/Examples of results
Taping Characteristic Inspection Appearance Inspection <Subject> LED Photo Reflector Infrared Sensor
catalog（1）
Download All Catalogs
Company information
Our company is headquartered in Kanazawa City, Ishikawa Prefecture, and has sales offices and factories both within and outside the prefecture. We focus on the bottling business, which involves filling beverages and other products, and we are expanding into various fields such as solid-liquid mixing and dispersion systems, laser processing machines (including fiber lasers and CO2 lasers), and semiconductor assembly equipment (such as taping machines, multifunctional test handlers, ball mount machines, and bonders). Please feel free to contact us if you have any inquiries.
