Battery system GS Yuasa manufactured Lineback Meister
LBBH-10-S3CR LBBH-20-S3CR LBBH-10-T3CR LBBH-20-T3CR
Adoption of solar power generation system integration for elevators, water supply pumps, commercial air conditioning, commercial refrigerators, LED lighting, and other public systems.
High functionality, high efficiency, quietness, and excellent operability touch panel system with series separation charging function - DC link system - Peak cut - Fire prevention regulations - FRT compatible - Ministry of Land, Infrastructure, Transport and Tourism construction specifications - Output control - Seismic S class - Quiet performance - LiB full cell monitoring - Touch panel - Power outage response
Inquire About This Product
basic information
■ Single-phase Line Back Meister Output capacity: 10kVA, 20kVA Inverter type: Voltage-type current control (grid-connected) / Voltage-type voltage control (standalone) Power control: Maximum power tracking control (solar panels) / Reverse current prevention control (during battery discharge) / Constant current constant voltage constant power control (during battery charging) Insulation: Non-isolated (transformerless) Cooling: Forced air cooling DC input rated voltage: 400V AC output phases: Single-phase 3-wire AC output voltage: 101V, 202V AC output frequency: 50Hz or 60Hz AC output power conversion efficiency: 95.0% Battery type: Lithium-ion battery ■ Three-phase Line Back Meister Output capacity: 10kVA, 20kVA Inverter type: Voltage-type current control (grid-connected) / Voltage-type voltage control (standalone) Power control: Maximum power tracking control (solar panels) / Reverse current prevention control (during battery discharge) / Constant current constant voltage constant power control (during battery charging) Insulation: Non-isolated (transformerless) Cooling: Forced air cooling DC input rated voltage: 400V AC output phases: Three-phase 3-wire AC output voltage: 202V AC output frequency: 50Hz or 60Hz AC output power conversion efficiency: 95.0% Battery type: Lithium-ion battery
Price range
Delivery Time
Applications/Examples of results
[Manufacturer Achievements] Kyoto Municipal Takeda Elementary School: Energy Storage 16kWh Yuri Ladies Clinic: Energy Storage 33kWh Iyo Bussan Co., Ltd.: Energy Storage 10kWh Kyoto Municipal Nishikyogoku Nishi Elementary School: Energy Storage 16kWh
Line up（4）
| Model number | overview |
|---|---|

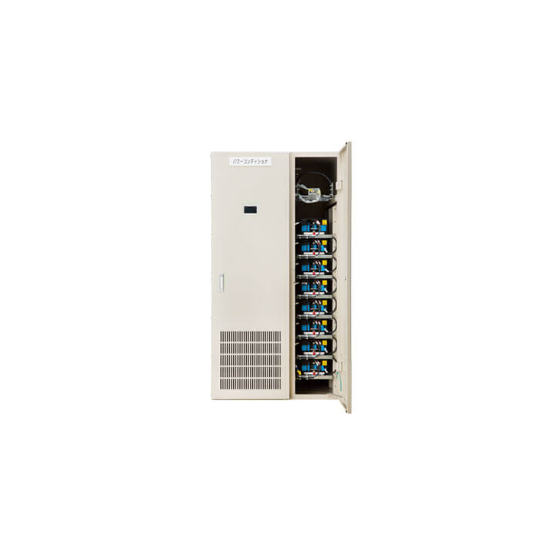

| LBBH-10-S3CR | 〇 Power conditioner panel 10kVA 600×800×1900 350kg 〇 Battery storage panel (equipped with lithium-ion batteries) for detailed inquiries. |
| LBBH-20-S3CR | 〇 Power conditioner panel 20kVA 600×800×1900 380kg 〇 Storage battery panel (equipped with lithium-ion battery) details available upon inquiry. |
| LBBH-10-T3CR | 〇 Power conditioner panel 10kVA 600×800×1900 320kg 〇 Battery storage panel (equipped with lithium-ion batteries) details available upon inquiry |
| LBBH-20-T3CR | 〇 Power conditioner panel 20kVA 600×800×1900 330kg 〇 Storage battery panel (equipped with lithium-ion battery) details available upon inquiry. |
