For rotation angle and position detection, use non-contact/magnetic sensors! High-precision and high-sensitivity products enable diverse and flexible mechanism development.

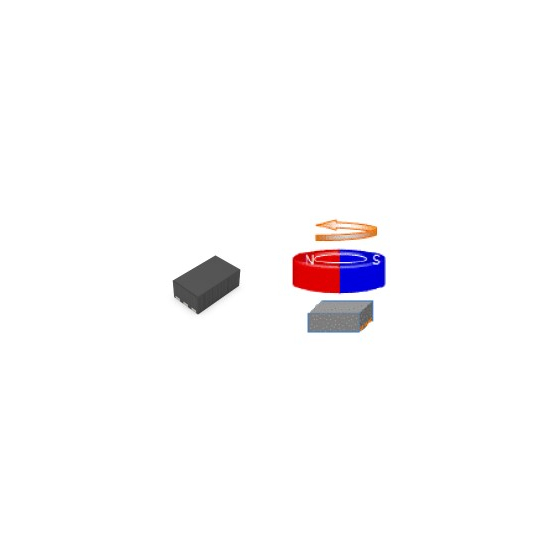

The 『HGARAN008A』 is a magnetic sensor for detecting rotational angles, slides, and stroke positions with high sensitivity and high precision, featuring analog linear two-phase output. It can detect even weak magnetic fields, has a large signal output, and offers a wide detection range, allowing for high flexibility in the arrangement of the sensor and magnet. It exhibits minimal operational variation, excellent temperature characteristics, and low power consumption. 【Features】 ■ Two-phase output & two full bridges (+sin, -sin, +cos, -cos) ■ Compact package DFN1810 ■ Low consumption current with 5kΩ bridge resistance ■ High layout flexibility *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Partial)】 ■Size: 1.8 x 1.05 x 0.65 (mm) ■Power Supply Voltage: up to 5.5 (V) ■Current Consumption: 1.1mA typ (5kΩ 5.5V) / 0.9mA min (6kΩ 5.5V) / 1.4mA Max (4kΩ 5.5V) ■Operating Temperature: -40 to +105 (deg.C) ■Operating Magnetic Field: 20 to 60 (mT) ■Bridge Resistance: 5kOhm typ @RT / 4kΩ min @RT / 6kΩ max @RT *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Main Applications】 ■ Motor control / rotation detection ■ Actuator rotation position detection ■ Stroke detection ■ Steering angle sensing ■ Various input devices, etc. *For more details, please download the PDF or feel free to contact us.
