Thorough safety with built-in BMS. Capable of a wide range of applications with performance that surpasses lead batteries.

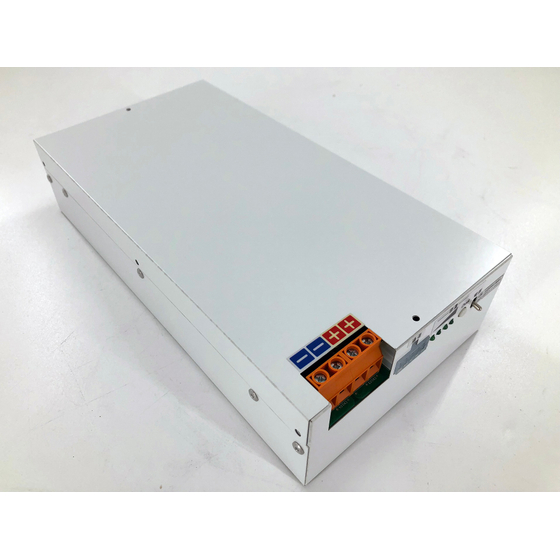

The "BT500-4S1P" is a highly reliable battery pack that utilizes lithium iron phosphate cells and incorporates our self-developed BMS. It monitors overcharging, over-discharging, short circuits, and temperature anomalies in multiple ways to ensure stable power supply. Compared to lead-acid batteries of the same capacity, it boasts a weight reduction of over 40%, a lifespan of more than three times, and usable capacity that is more than double, demonstrating overwhelming performance differences. With zero maintenance required for long-term use, it can be safely implemented in vessels, camper vans, golf carts, solar power systems, and more. The BT500 series, which combines safety, efficiency, and reliability, contributes to a wide range of fields as a next-generation power solution. *For more details, please refer to the PDF materials or feel free to contact us.*
Inquire About This Product
basic information
Specifications Type: Lithium-ion battery, Lithium iron phosphate Nominal voltage: 12.8V Nominal capacity: 25Ah Nominal power: 320Wh Voltage range: 11.2–14.4V Maximum charging current: 25A Maximum discharge current: 25A / Continuous 60A/10Sec Recommended charging conditions: Charging voltage 14.4V Charging current 2.5A (0.2C) BMU protection functions: Overcurrent protection, short circuit protection, overvoltage protection, over-discharge protection, battery temperature protection, cell balance control BMU self-consumption current: Operating: below 30mA, Switch OFF: below 10uA Communication functions: RS232C or CAN Total voltage, cell voltage, battery temperature, current, alarms Display functions: Battery level indication: 4 LED lights Check with push button (Flashing: ~20%, 1 light on: 20–39%, 4 lights on: 80% or more) Operating temperature: Charging 0–45℃ Discharging -20℃–45℃ Storage temperature: -20℃–45℃ Casing: Material: Color steel plate t=0.5 Refer to the outline drawing. Weight: Approximately 3 kg *For more details, please refer to the PDF document or feel free to contact us.*
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（4）
Download All Catalogs
Company information
Axon Data Machine Co., Ltd. is engaged in the development, manufacturing, and sales of solar power generation and battery-related equipment. We handle a variety of products, including solar systems, engine starters, and surge protection boosters and cables. Please feel free to contact us if you have any inquiries.
