For those who want to support high insulation but are struggling with power supply miniaturization! Introducing a high-voltage, high-insulation DC-DC converter.

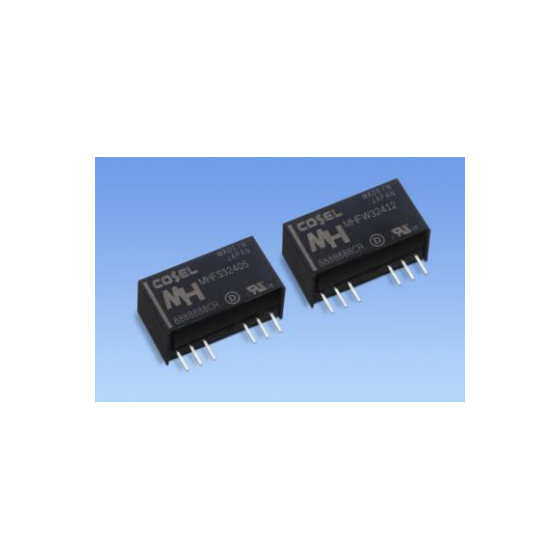

The "MH Series" is a compact, general-purpose, high-isolation DC-DC converter with a maximum inter-terminal capacitance of 20pF, resulting in low leakage current. It is suitable for measuring instruments that require high isolation between input and output. It can also be used in devices where high voltage is constantly applied between input and output. Due to its compact package, it optimizes the board area, and the input/output pin configuration is common (SIP8) for both 3W and 6W models, allowing for replacement without changing the circuit board. 【Features】 ■ Suitable for measuring instruments that require high isolation between input and output ■ Usable in devices where high voltage is constantly applied between input and output ■ Low leakage current due to a maximum inter-terminal capacitance of 20pF *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 ■ Optimized board area due to compact package ■ Common input/output pin configuration for 3W/6W (SIP8) ■ Replacement according to required voltage can be done without changing the board * For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage Example】 ■Issue: Traditionally, it was necessary to ensure insulation with a transformer at the input section of measuring instruments that required high pressure measurement. ■Effect: With this product, the insulation withstand voltage between input and output is high, allowing for a reduction in transformers while maintaining insulation. *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Ryosan is one of Japan's leading electronics trading companies, responsible for the sales of devices such as semiconductors and electronic components, as well as IT equipment and solutions. Based in its Tokyo headquarters, the company has developed a network of over 40 locations both domestically and internationally. It has established a top-level network among domestic electronics trading companies and consistently provides customer-oriented services. As an "Electronics System Coordinator" that offers added value beyond that of a mere trading company, Ryosan continues its unwavering efforts to enhance customer satisfaction.
