Lightweight batteries ideal for marine use. Supports safe navigation with long life and a safety-focused design.

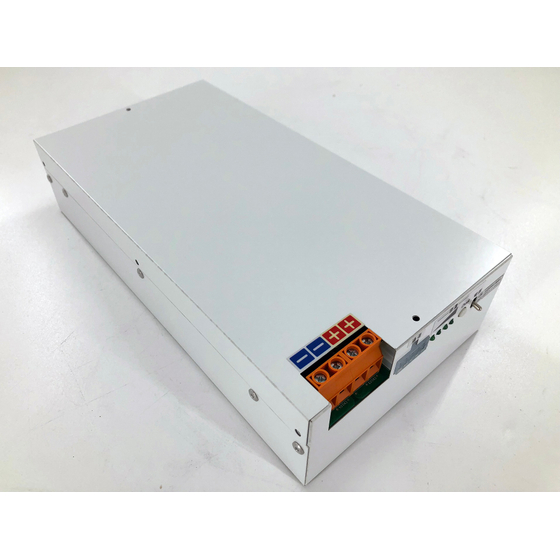

The "BT500-4S1P" is a high-performance lithium battery suitable for power supply at sea. With LFP cells and BMS, it provides multiple protections against overcharging, over-discharging, and short circuits, making it safe to use on vessels. As an alternative to lead-acid batteries, it achieves a weight reduction of over 40% and a lifespan of more than three times, ensuring stable power supply for long-distance navigation, lighting, refrigerators, navigation equipment, and more. *For more details, please refer to the PDF document or feel free to contact us.*
Inquire About This Product
basic information
Specifications Type: Lithium-ion battery, Lithium iron phosphate Nominal voltage: 12.8V Nominal capacity: 25Ah Nominal power: 320Wh Voltage range: 11.2 to 14.4V Maximum charging current: 25A Maximum discharge current: 25A / Continuous 60A/10Sec Recommended charging conditions: Charging voltage 14.4V Charging current 2.5A (0.2C) BMU protection features: Overcurrent protection, short circuit protection, overvoltage protection, over-discharge protection, battery temperature protection, cell balance control BMU self-consumption current: Operating: below 30mA, Switch OFF: below 10uA Communication function: RS232C or CAN Total voltage, cell voltage, battery temperature, current, alarms Display function: Battery level indication: 4 LED lights Check with push button (Flashing: ~20%, 1 light on: 20-39%, 4 lights on: 80% or more) Operating temperature: Charging 0 to 45℃ Discharging -20℃ to 45℃ Storage temperature: -20℃ to 45℃ Casing: Material: Color steel plate t=0.5 Refer to the outline drawing. Weight: Approximately 3 kg *For more details, please refer to the PDF document or feel free to contact us.*
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（4）
Download All Catalogs
Company information
Axon Data Machine Co., Ltd. is engaged in the development, manufacturing, and sales of solar power generation and battery-related equipment. We handle a variety of products, including solar systems, engine starters, and surge protection boosters and cables. Please feel free to contact us if you have any inquiries.
