The ideal long-life battery for renewable energy. Provides stable power with efficient energy storage.

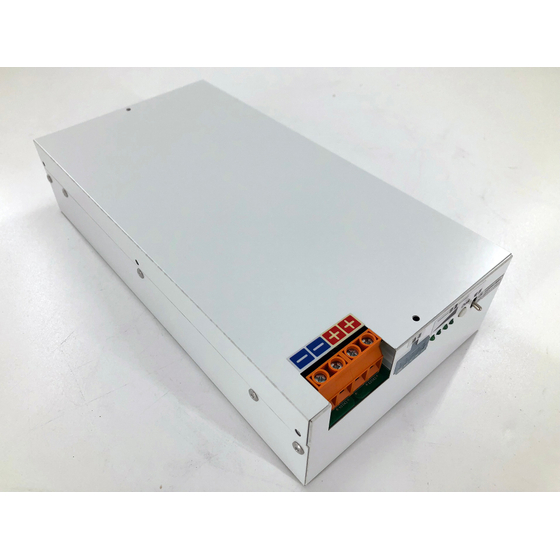

The "BT500-4S1P" is ideal for energy storage applications in solar power generation systems. It ensures high safety with LFP cells and BMS while maintaining a long lifespan even in renewable energy environments where charging and discharging are repeated. It stores energy more efficiently than lead-acid batteries, enabling clean and sustainable power usage. *For more details, please refer to the PDF document or feel free to contact us.*
Inquire About This Product
basic information
Specifications Type: Lithium-ion battery, Lithium iron phosphate Nominal voltage: 12.8V Nominal capacity: 25Ah Nominal power: 320Wh Voltage range: 11.2–14.4V Maximum charging current: 25A Maximum discharge current: 25A / Continuous 60A/10Sec Recommended charging conditions: Charging voltage 14.4V Charging current 2.5A (0.2C) BMU protection features: Overcurrent protection, short circuit protection, overvoltage protection, over-discharge protection, battery temperature protection, cell balance control BMU self-consumption current: Operating: below 30mA, Switch OFF: below 10uA Communication function: RS232C or CAN Total voltage, cell voltage, battery temperature, current, alarm Display function: Battery level indication: 4 LED lights Check with push button (Flashing: ~20%, 1 light on: 20–39%, 4 lights on: 80% or more) Operating temperature: Charging 0–45℃ Discharging -20℃–45℃ Storage temperature: -20℃–45℃ Casing: Material: Color steel plate t=0.5 Refer to the outline drawing. Weight: Approximately 3 kg *For more details, please refer to the PDF document or feel free to contact us.*
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（4）
Download All Catalogs
Company information
Axon Data Machine Co., Ltd. is engaged in the development, manufacturing, and sales of solar power generation and battery-related equipment. We handle a variety of products, including solar systems, engine starters, and surge protection boosters and cables. Please feel free to contact us if you have any inquiries.
