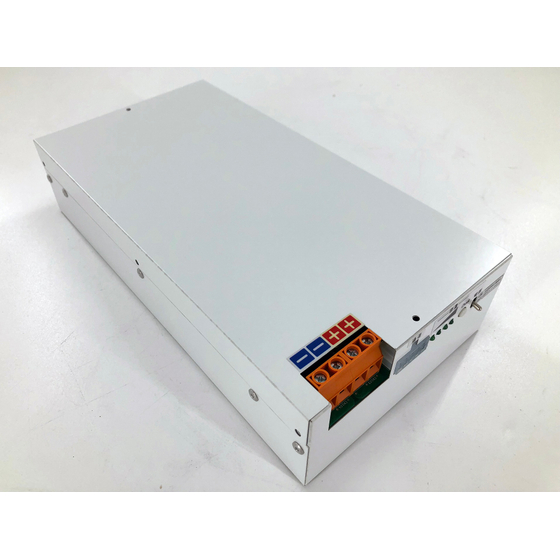

Durable power supply. An industrial solution with a long lifespan and no maintenance required.
The BT500 series is a high-performance power supply designed to support long-term operation in industrial equipment. With the stability of LFP cells and multiple protections from the BMS, it achieves both safety and reliability. Compared to conventional lead-acid batteries, its lifespan is over three times longer, and its weight is less than 40%, contributing to space-saving and lightweight equipment. *For more details, please refer to the PDF materials or feel free to contact us.*
Inquire About This Product
basic information
Specifications Type: Lithium-ion battery, Lithium iron phosphate Nominal Voltage: 12.8V Nominal Capacity: 25Ah Nominal Power: 320Wh Voltage Range: 11.2–14.4V Maximum Charge Current: 25A Maximum Discharge Current: 25A / Continuous 60A/10Sec Recommended Charging Conditions: Charging Voltage 14.4V Charging Current: 2.5A (0.2C) BMU Protection Functions: Overcurrent protection, short circuit protection, overvoltage protection, over-discharge protection, battery temperature protection, cell balance control BMU Self-Consumption Current: Operating: below 30mA, Switch OFF: below 10uA Communication Function: RS232C or CAN Total voltage, cell voltage, battery temperature, current, alarms Display Function: Battery level indication: 4 LED lights, check with push button (Flashing: ~20%, 1 light on: 20–39%, 4 lights on: 80% or more) Operating Temperature: Charging 0–45℃ Discharging -20℃–45℃ Storage Temperature: -20℃–45℃ Casing: Material: Color steel plate t=0.5 Refer to the outline drawing. Weight: Approximately 3 kg *For more details, please refer to the PDF document or feel free to contact us.*
Price information
Please feel free to contact us.
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（4）
Download All Catalogs
Company information
Axon Data Machine Co., Ltd. is engaged in the development, manufacturing, and sales of solar power generation and battery-related equipment. We handle a variety of products, including solar systems, engine starters, and surge protection boosters and cables. Please feel free to contact us if you have any inquiries.
