Shorten work time during panel installation! Achieve improved cooling performance and installation efficiency!

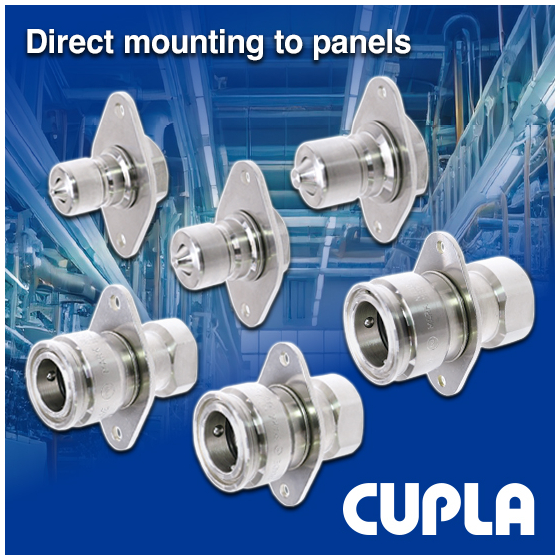

The "High Flow Coupler with Flange Fixation" is a quick fluid connector with a flange that can be directly mounted to the equipment panel. Its large flow design enhances cooling efficiency while allowing for quick installation and maintenance on the panel. 【Features】 - Diamond-shaped flange design allows for installation in narrow spaces - Automatic opening and closing valves built into both the plug and socket - Quick connection and disconnection of cooling piping - Compact space-saving design (connection length reduced by up to 22% compared to our standard) *This product is a semi-standard item. For more details, please feel free to contact our sales representative.
Inquire About This Product
basic information
【Specifications】 ■Main body material: Stainless steel (SUS304) ■Mounting screw sizes: Rc1/4, Rc3/8, Rc1/2 ■Maximum operating pressure MPa{kgf/cm²}: 1.0 {10} ■Pressure resistance MPa{kgf/cm²}: 1.5 {15} ■Seal material: EPDM (Ethylene Propylene Rubber) ■Operating temperature range: -40℃ to +150℃
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
