An infinite rotation stage featuring a worm gear mechanism! The vibration amount on the table surface is achieved to be less than 5μm.

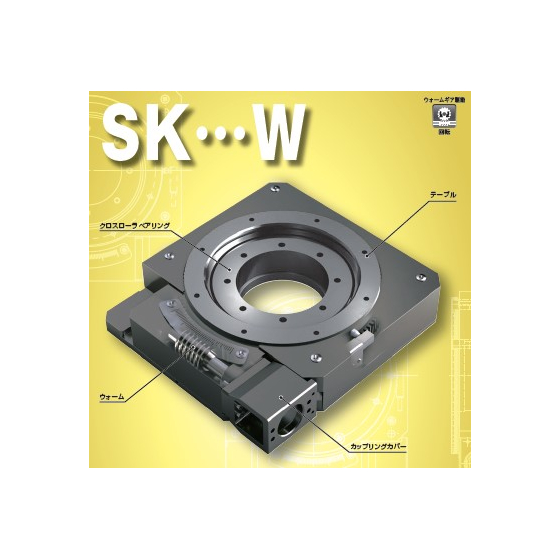

The "SK…W" is a rotating stage that incorporates IKO cross roller bearings into its rotation mechanism. By directly using cross roller bearings for the table, it achieves high precision in rotational runout. The table allows for direct attachment of equipment tables or inspection objects, reducing the effort required to design from scratch using mechanical components. 【Features】 ■ High precision ■ Low profile and high rigidity ■ Reduced design workload *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Operating angle range degrees: 360 ■ Resolution seconds: 1.08 ■ Maximum table rotation speed min-1: 5 ■ Maximum worm shaft rotation speed min-1: 600 ■ Moment stiffness seconds/N·cm: 0.04 ■ Load capacity N: 50 *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
