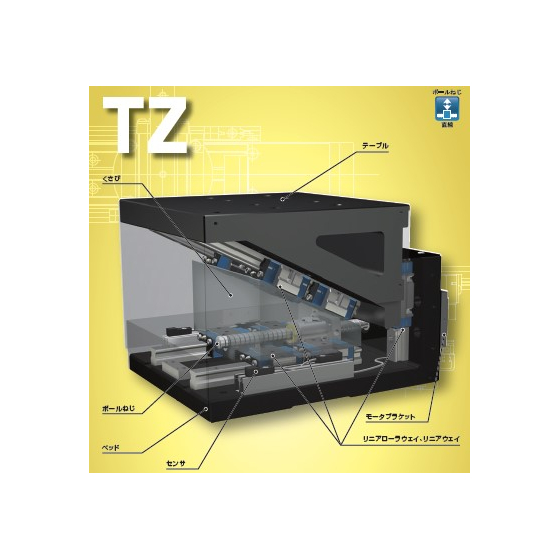

Adopting a unique wedge mechanism, it performs compact and high-precision vertical positioning!
We would like to introduce our precision lift table 'TZ' that we handle. We offer two types: high precision and high rigidity type, and standard type. The table dimensions are available in □120mm and □200mm. It comes standard with limit sensors and origin/preceding origin sensors, which are compactly built into the main body, making it easy to integrate into machines and devices. 【Features】 ■ Compact precision lift table ■ Two types and two sizes to choose from based on application ■ Higher level positioning achievable with linear encoder installation ■ Standard equipped with sensors ■ Usable as a Z-axis in multi-axis configurations *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Accuracy (Partial)】 ■ Type and Size: TZ120X ・ Repeated Positioning Accuracy: ±0.001 ・ Lost Motion: 0.001 ・ Parallelism during Table Elevation: 0.010 * For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Combination Example】 ■XYZ Positioning Table *For more details, please download the PDF or feel free to contact us.
