[Analysis Case] Composite Analysis of Specific Areas within Electronic Devices (C0572)

Non-destructive assessment of specific areas inside the device! Evaluation of detailed structure and composition information of specific areas through cross-sectional observation.

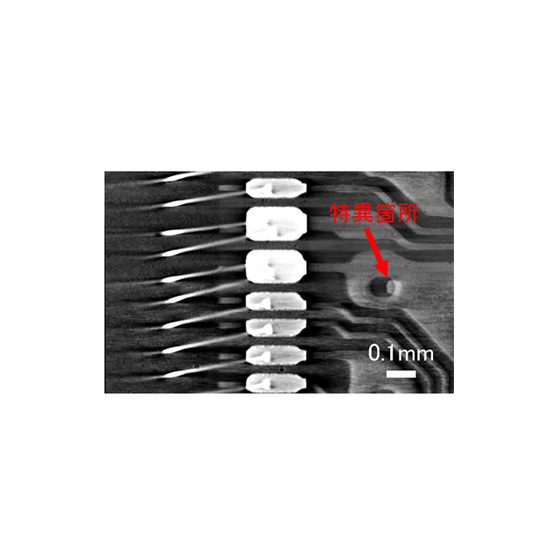

Our company offers technologies suitable for structural evaluation of electronic devices, and we propose analytical methods tailored to the observation field and objectives. In a case where we investigated specific areas of a device using X-ray CT and FIB-SEM, we first used X-ray CT to observe the internal structure of the entire sample and identify specific areas. Next, we used FIB-SEM to confirm the detailed structure of the specific structures identified on the vias. 【Measurement and Processing Methods】 ■[SEM] Scanning Electron Microscopy ■[SEM-EDX] Energy Dispersive X-ray Spectroscopy (SEM) ■X-ray CT Method ■[FIB] Focused Ion Beam Processing *For more details, please download the PDF or feel free to contact us.
