Observation of cross-sections with an accuracy of several tens of nanometers and a size of several hundred micrometers is possible!

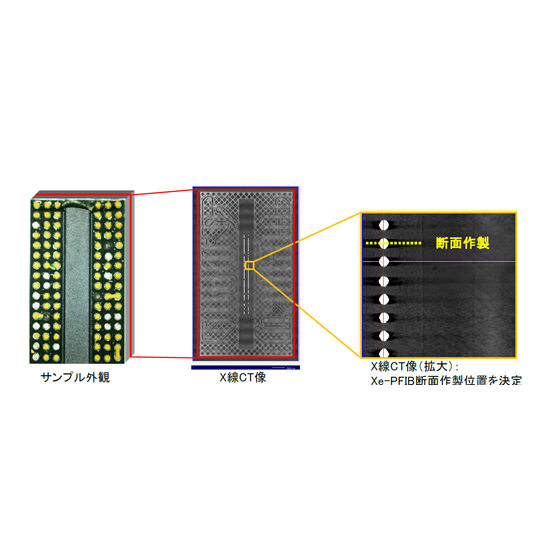

We offer wide-area cross-sectional SEM observation (C0610) using Xe-PFIB. The metal bonding that electrically connects the electrodes of integrated circuits, electrodes, printed circuit boards, and semiconductor packages has a diameter of several tens of μm to several hundred μm. With Xe-PFIB (Xe-Plasma Focused Ion Beam), we can target processing positions on the order of several tens of nm and create cross-sections of several hundred μm square, allowing for a detailed understanding of the entire view at the center of the bonding. 【Measurement and Processing Methods】 ■ [SEM] Scanning Electron Microscopy ■ X-ray CT Method ■ [FIB] Focused Ion Beam Processing *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Product Field】 ■LSI・Memory *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Analysis Objectives】 ■Shape Evaluation ■Structural Evaluation ■Product Investigation *For more details, please download the PDF or feel free to contact us.
