Hokkaido Univ. Technology ：Purification Methods for Single-Walled Carbon Nanotubes：HK25-002
High-purity,long SWCNTs with specific chirarity

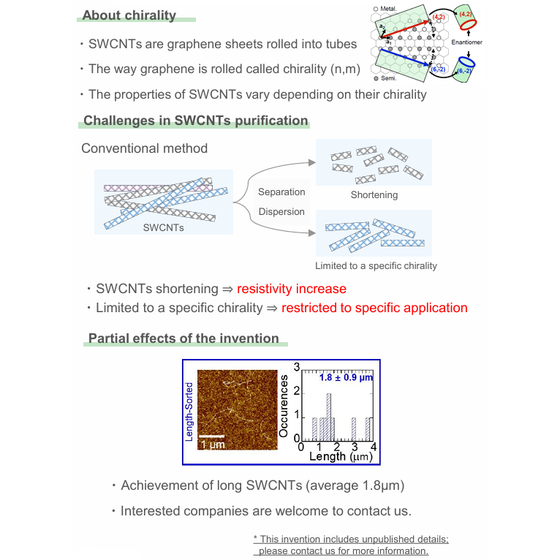

Single-walled carbon nanotubes (SWCNTs) are regarded as promising materials for next-generation electronics owing to their unique optical, electronic, and mechanical properties. Conventional synthesis methods such as laser ablation and arc discharge create SWCNTs with a broad mixture of chiralities, resulting in inconsistent device performance. Polymer wrapping and density gradient ultracentrifugation (DGU) are widely used for chirality separation, but polymer wrapping is limited to certain chiralities and DGU tends to shorten nanotube length, increasing resistance in electronic devices. We have developed a new dispersion and purification method that enables efficient separation of a wide variety of SWCNT chiralities—including enantiomers—while preserving tube length. The resulting high-purity, long SWCNTs allow the realization of advanced devices with high speed and sensitivity, expanding the possibilities for practical applications in electronics and sensing technologies.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
catalog（1）
Download All Catalogs
Company information
The revenue generated from technology transfer is reinvested as new research funding for universities and researchers, and is utilized to create further research outcomes. To ensure the smooth operation of this cycle, known as the "Intellectual Creation Cycle," we will vigorously promote technology transfer. The types of seeds we handle include patents, know-how, databases, and programs. We have established a collaborative framework by signing basic technology transfer agreements with the following universities (as of June 1, 2025): Tohoku University, Hirosaki University, Iwate University, Akita University, Fukushima University, Yamagata University, Tohoku Gakuin University, Iwate Medical University, Fukushima Medical University, Aizu University, Miyagi University, Hokkaido University, Muroran Institute of Technology, and Showa Medical University.
