Volex is a leading manufacturer and supplier of Direct Attach Copper (DAC) cables.

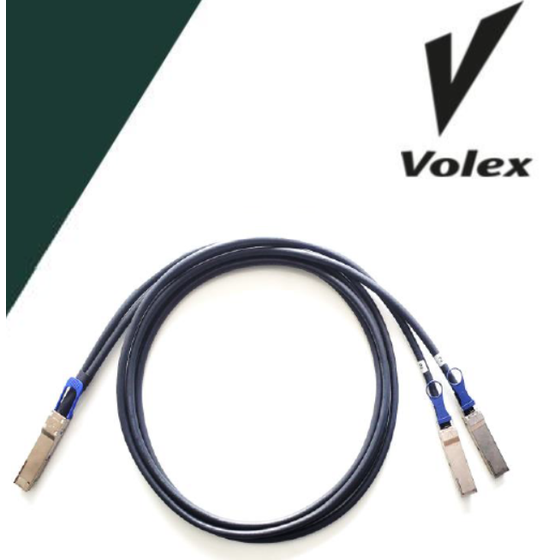

The active breakout direct attach cable from Volex's QSFP-DD to 2x/4x QSFP56 features eight 50Gbps channels using PAM-4 modulation for both transmission and reception. This breakout cable is available in configurations of 400Gbps (QSFP-DD) to 2x 200Gbps (2x QSFP56) or 4x 100Gbps (4x QSFP56). The cable assembly complies with QSFP-DD MSA and IEEE 802.3cd specifications. The signal integrity, which experiences significant stress during high-speed data transmission, is enhanced by advanced linear equalization. As a result, it enables long-distance transmission of up to 7m compared to the passive version's 3m, while its unique dielectric materials and cable structure achieve the smallest cable size and the highest flexibility.
Inquire About This Product
basic information
【Standard Compliance】 - IEEE 802.3cd - QSFP-DD/QSFP-DD800 HWMSA, SFF-8665, SFF-8661, SFF-8636, SFF-8679 - EIA-364 - UL 94, 1581, VW1, File No. E510564 - RoHS For more details, please refer to the attached data sheet.
Price range
Delivery Time
Applications/Examples of results
【Application Areas】 • Switches, Servers, Routers, Storage Arrays • Networking Equipment • Data Centers • Storage Area Networks • Telecommunication Central Offices • Test and Measurement Equipment
