Volex is a leading manufacturer and supplier of Direct Attach Copper (DAC) cables.

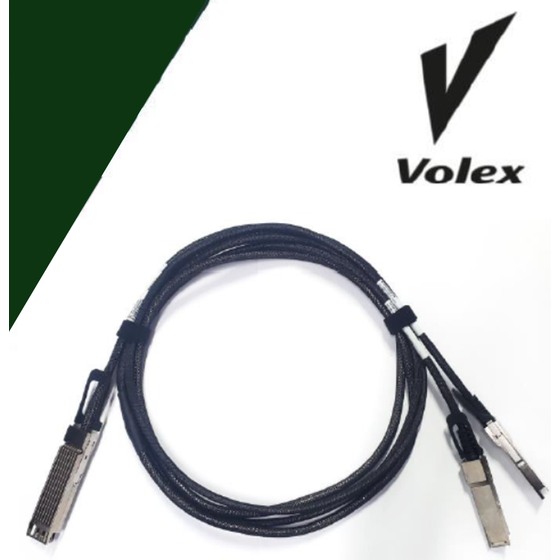

The breakout cable assembly from Volex's 800G OSFP to 2x/4x Q112 AEC features eight 100Gbps channels, each employing PAM-4 modulation for both transmission and reception directions. This breakout cable is available in configurations of 800Gbps (OSFP) to 2x 400Gbps (2x QSFP112) or 4x 200Gbps (4x QSFP112). The signal integrity, which experiences significant stress during high-speed data transmission, is enhanced by advanced DSP equalization. As a result, long-distance transmission of up to 5 meters is possible with the smallest cable size and maximum flexibility.
Inquire About This Product
basic information
【Standard Compliance】 • IEEE 802.3ck, Infiniband NDR • OSFP MSA Rev 5.0 / SFF-8665, SFF-8661, SFF-8636, SFF-8679 • CMIS 5.0 • EIA-364 • UL 94, 1581, VW1, File No. E510564, RoHS For more details, please refer to the attached data sheet.
Price range
Delivery Time
Applications/Examples of results
【Application Areas】 • Switches, Servers, Routers, Storage Arrays • Networking Equipment • Data Centers • Storage Area Networks • Telecommunication Central Offices • Test and Measurement Equipment
catalog（1）
Download All Catalogs
Company information
Volex is dedicated to providing connection and integration solutions for performance-critical applications in the world's most demanding environments. Our expertise covers a wide range of fields, including complex industrial technology, consumer electronics, electric vehicles, and healthcare. Our facilities are world-class, and we take pride in delivering top-quality finished products and components wherever needed, adding value to our partners at various stages. From concept to reality, we can provide global solutions, scale, efficiency, and value-added expertise.
