Volex is a leading manufacturer and supplier of direct attach copper (DAC) cables.

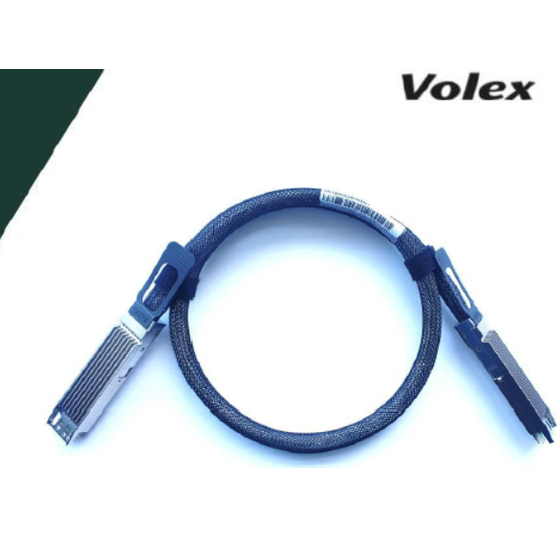

The Volex 1.6T OSFP1600 active copper cable features 224Gbps PAM4 channels with 8 channels for transmission and 8 channels for reception at 1.6T operation. The cable assembly complies with IEEE 802.3df and 802.3dj 1600GBase-CR8 standards. The signal integrity, which experiences significant stress during high-speed data transmission, is enhanced by advanced linear equalization. As a result, it is possible to extend up to 2.5m compared to the passive version's 1m. The unique dielectric materials and cable structure provide the smallest cable size and the highest flexibility. Consequently, a highly flexible DAC cable has been achieved, reducing bend space by up to 30% compared to the passive version, making it ideal for deployment in high-density racks.
Inquire About This Product
basic information
【Standard Compliance】 - IEEE 802.3dj & 802.3df - Specification for OSFP, Rev 5.02 - EIA-364 - UL 94, 1581, VW1, File No. E510564, RoHS - CMIS 5.0 compliance For more details, please refer to the attached datasheet.
Price range
Delivery Time
Applications/Examples of results
【Application Areas】 - Switches, Servers, Routers, Storage Arrays - Networking Equipment - Data Centres - Telecommunication Central Offices - Test and Measurement Equipment
catalog（1）
Download All Catalogs
Company information
Volex is dedicated to providing connection and integration solutions for performance-critical applications in the world's most demanding environments. Our expertise covers a wide range of fields, including complex industrial technology, consumer electronics, electric vehicles, and healthcare. Our facilities are world-class, and we take pride in delivering top-quality finished products and components wherever needed, adding value to our partners at various stages. From concept to reality, we can provide global solutions, scale, efficiency, and value-added expertise.
