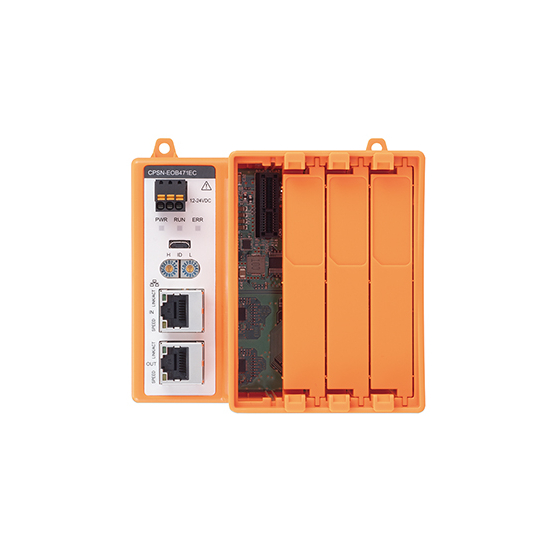

EtherCAT coupler unit that can use a rich variety of I/O modules.
● Achieves a minimum communication cycle time of 125 μsec It can operate with 16 digital inputs and 16 digital outputs at a minimum communication cycle time of 125 μsec. ● A wide range of CONPROSYS nano series I/O modules available You can freely expand the I/O modules according to the required functions from the diverse I/O modules of the CONPROSYS nano series. ● Supports ambient temperatures from -20 to 60℃ It is compatible with a wide temperature range of -20 to 60℃, making it usable in various environments.
Inquire About This Product
basic information
【Specifications】 - Operating Modes: FreeRun mode, SM synchronization mode - Addressing: Auto-increment address method, Configuration station method - Process Data: Variable PDO mapping - Supported Profiles: CoE, FoE - Number of Slots: 4 Slots (Note: 8 Slot model is also available) - Dimensions (mm): 110(W) × 74.8(D) × 95(H) (excluding protrusions) - Weight: 250g - Installation Method: Mounted on a 35mm DIN rail, or mounted on a wall using screws
Price information
23,000 yen (excluding tax)
Price range
P2
Delivery Time
P1
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
EtherCAT is mainly adopted in semiconductor manufacturing equipment. Due to its low communication delay and very high real-time capability, it is used for controlling servo motors. When performing inspections synchronized with real-time control via EtherCAT, I/O devices that support synchronization are required, so we have prepared EtherCAT coupler units that can use a wide variety of I/O modules.
Line up（2）
| Model number | overview |
|---|---|
| CPSN-EOB471EC-41 | EtherCAT sub-device 2× LAN 4× I/O module slots |
| CPSN-EOB471EC-81 | EtherCAT sub-device 2× LAN 8× I/O module slots |
