For embedded systems, equipped with 14th/13th generation Core i9/i7/i5/i3 LGA1700 socket, chipset H610E.

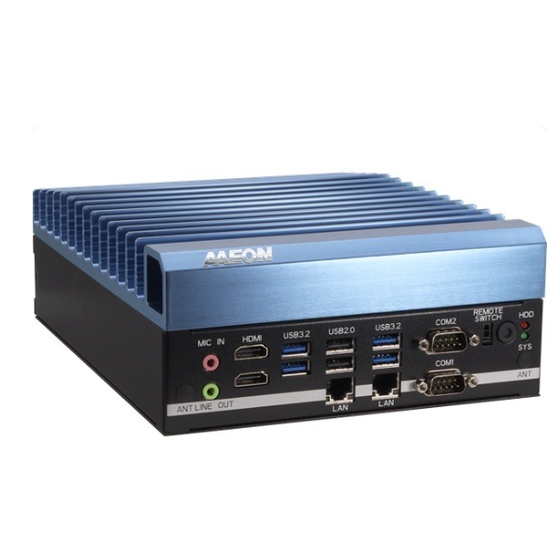

【AAEON BOXER-6645U-RPL Features】 ■ Dimensions: 180mm wide × 77.2mm high × 220mm deep, 3.06 liters ■ Fanless design supporting 14th/13th/12th generation Core i9/i7/i5/i3 CPUs (LGA 1700) ■ Memory: DDR5 SO-DIMM, up to 64GB ■ 4 USB3.2 + 4 USB2.0 ports ■ 2 COM ports / 1 2.5GbE + 1 GbE port ■ HDMI x 2 (4K x 2K @ 30Hz) ■ Operating temperature range: -25 to 70℃ ■ Wide DC input: 10V to 35V
Inquire About This Product
basic information
Specifications ■CPU: Socket LGA1700, compatible with 14th/13th/12th generation Core i9/i7/i5/i3 CPUs (LGA 1700), fanless ■Chipset: H610E ■Storage: 2x 2.5" SATA HDD/SSD ■Expansion Slots: 1x M.2 2280 M Key NVMe, 1x M.2 2230 E-Key, 1x Full-size Mini PCIe ■Ethernet: 1x 2.5GbE, 1x GbE (RJ-45) ■I/O Connectors: 2x HDMI 1.4b, 4x USB3.2 (Gen2 5Gbps), 2x USB2.0, 2x RS-232/422/485, Audio Line out x 1, Mic in x 1 ■Input Power: DC input 10–35V ■Operating Temperature: -25–70℃ (with airflow) (TDP 35W CPU) / -25–55℃ (with airflow) (TDP 65W CPU) ■Certification: CE/FCC Class A Supported OS: Windows 10 IoT Enterprise 64bit / Windows 11 PRO 64bit / Linux Ubuntu 22.04
Price information
Open price
Delivery Time
※It may vary depending on quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（2）
| Model number | overview |
|---|---|
| BOXER-6645U-RPL-A1-1010 | Supports 14th/13th/12th generation Core i9/i7/i5/i3 CPUs |
| Option | AC adapter (180W), M.2 2280 SSD, M.2 2280 heat sink pack |
