For embedded systems, equipped with Raptor Lake 13th generation Core i7-1370PE/i5-1340PE/i3-1320PE.

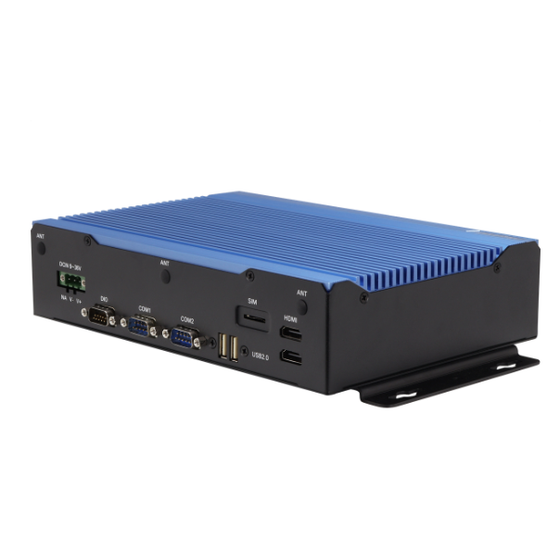

【AAEON BOXER-6649-RAP Features】 ■ Width 242 × Height 53 × Depth 167 mm, 2.14 liters ■ Fanless 13th generation Core i7-1370PE/i5-1340PE/i3-1320PE CPU ■ Memory DDR5 SO-DIMM up to 96GB ■ 2 USB3.2 + 4 USB2.0 ■ 2 COM, 5 2.5GbE (4 PoE) ■ HDMI x 2 ■ Wide DC input 9V to 36V ■ Supported OS: Windows 10 IoT Ent LTSC 2021/Windows 11 IoT Ent LTSC 2024/Windows 11 PRO/Linux Ubuntu 24.04 and above
Inquire About This Product
basic information
Specifications ■CPU: Raptor Lake Core i7-1370PE/i5-1340PE/i3-1320PE Fanless ■Chipset: SoC ■Memory: 2x DDR5 SODIMM, up to 96GB ■Storage: 1 x 2.5" SATA HDD/SSD ■Expansion Slots: 1x M.2 2280 M Key NVMe (PCIe(Gen4)[x4]), 1x M.2 2230 E-Key, 1x M.2 3052 B-Key ■Ethernet: 5 x 2.5GbE (IEEE802.3 at PoE PSE (total 60W (DC input 12V or more)/20W (DC input 12V)) x 4) (RJ-45) ■I/O Connectors: 2 x HDMI 1.4b, 2 x USB3.2 (Gen2 10Gbps), 4 x USB2.0, 2 x RS-232/422/485, Audio Line out x 1, Mic in x 1, DIO 8bit ■Input Power: DC input 9–36V ■Operating Temperature: -25–60℃ (with airflow) ■Certification: CE/FCC Class A
Price information
Open price
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（4）
| Model number | overview |
|---|---|
| BOXER-6649-RAP-A1-1010 | Core i3-1320PE |
| BOXER-6649-RAP-A2-1010 | Core i5-1340PE |
| BOXER-6649-RAP-A3-1010 | Core i7-1370PE |
| Option | AC adapter (180W) |
