Introducing a type of double-sided circuit board! It is widely used in LED circuit boards, electronic devices, and white goods.

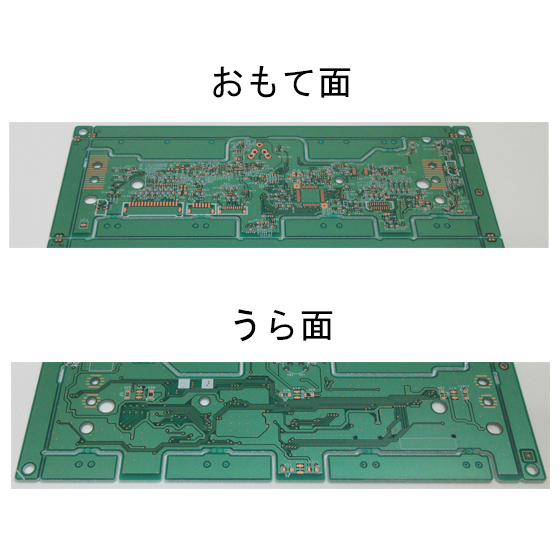

The "double-sided non-through hole substrate" is a printed circuit board that does not connect the patterns on the front and back through through-holes, and it is also referred to as a double-sided non-through substrate or double-sided non-plated substrate. It is effective for heat dissipation and warping suppression, and is widely used in LED substrates. Additionally, we also handle printed circuit boards with patterns on the front and back connected by through-holes using copper plating or silver paste, known as "double-sided copper through-hole substrates" and "double-sided silver through-hole substrates." 【Features】 < Double-sided non-through hole substrate > ■ A printed circuit board that does not connect the patterns on the front and back through through-holes ■ Effective for heat dissipation and warping suppression < Double-sided copper through-hole substrate > ■ Allows for larger wiring and mounting space ■ Possible to reduce the size of the substrate *For more details, please feel free to contact us.
Inquire About This Product
basic information
【Other Features】 <Double-sided Silver Through Hole PCB> ■ It is possible to reduce the size of the PCB. ■ Widely used in electronic devices and white goods. *For more details, please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please feel free to contact us.
Company information
Our company specializes in etching processing, electroforming, and the production of printed circuit boards, with numerous factories located nationwide. We offer a wide range of services, from texture processing for mass production molds such as etching, sandblasting, Ceracib, and Ceracoat, to texture processing for prototypes and molded products like Banatone and Realtech. Please feel free to contact us with any inquiries.
