Rotational motion and limited reciprocating motion are possible on the axis! It is a structure where a holder incorporating a row of balls moves within the outer ring.

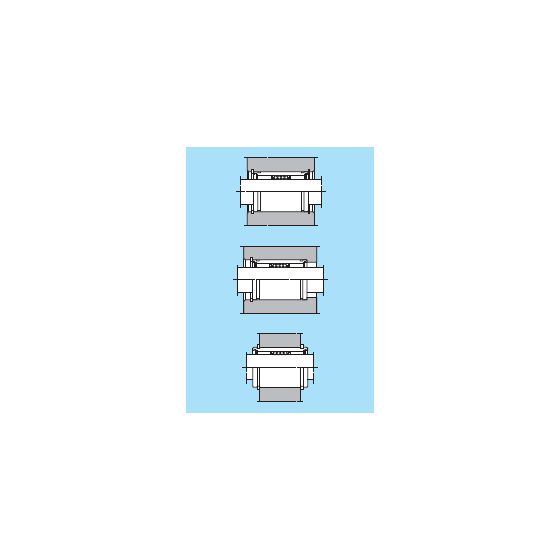

Our "Linear Ball Bearing with Stroke Type" features a structure where a retainer incorporating a row of balls can move circumferentially and axially within the outer ring, allowing for both rotational motion and limited reciprocating motion along the axis. At both ends of the outer ring, retaining rings are installed as stoppers for the retainer. Additionally, a wave spring is provided between the retaining ring and the retainer to cushion impacts and prevent wear. We also manufacture a version equipped with synthetic rubber seals at both ends of the outer ring. 【Dimensional Accuracy】 ■ Ball Inscribed Circle Diameter (Fw): F6 ■ Outer Ring Outer Diameter (D): h5 *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
