High rigidity structure! Enhanced rigidity and load-bearing capacity with multi-axis support design, suitable for heavy cutting.

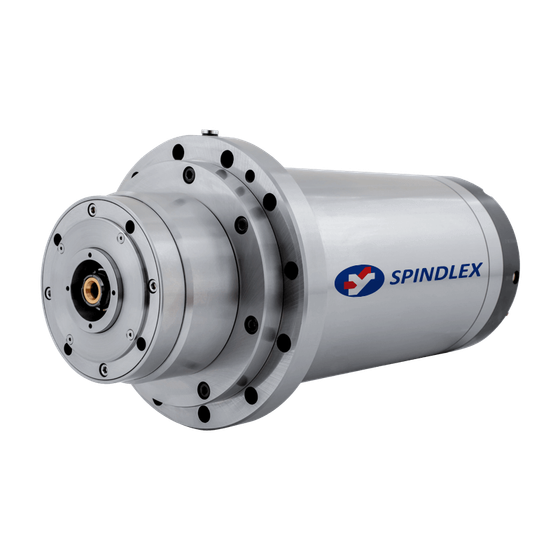

The "SY-210-12K-28kW" is a precision milling spindle that supports high-precision machining with a spindle runout accuracy of within 2μm. It flexibly accommodates specification changes such as tool interfaces and center-through options. The HSK tool interface is suitable for high-speed cutting and achieves high rigidity and high-precision tool clamping. 【Features】 ■ High rigidity structure: Enhanced rigidity and load-bearing capacity with a multi-bearing design, suitable for heavy cutting. ■ Ultra-high precision: Spindle runout accuracy within 2μm, supporting high-precision machining. ■ Customization support: Flexibly accommodates specification changes such as tool interfaces and center-through options. ■ HSK tool interface: Suitable for high-speed cutting, achieving high rigidity and high-precision tool clamping. ■ Equipped with an encoder: Improves rotational control and positioning accuracy. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Housing Diameter (mm): φ210h6 ■Rotational Speed (RPM): 12,000 ■Output S1/S6 (kW): 22/28 ■Reference Rotational Speed (RPM): 2,000 ■Rated Voltage (V): 380 ■Motor Type: Asynchronous *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company was established in 1977, starting with the development of dedicated machines. As we progressed with in-house development, we deeply recognized the importance of spindles. In 1998, we introduced repair and manufacturing technology for high-frequency spindles from Europe, and in addition to repairing these high-frequency spindles, we have also been engaged in the research and development of built-in high-speed spindles. With the management philosophy of "Quality First," we aim to enhance our customers' competitiveness by continuously developing high-quality built-in high-speed spindles. Additionally, in addition to mass production, we provide specialized services for machine tool manufacturers with specific needs for built-in high-speed spindles, including design, development, assembly, and testing.
