Temperature control uses water cooling to suppress thermal displacement, stabilizing temperature and precision!

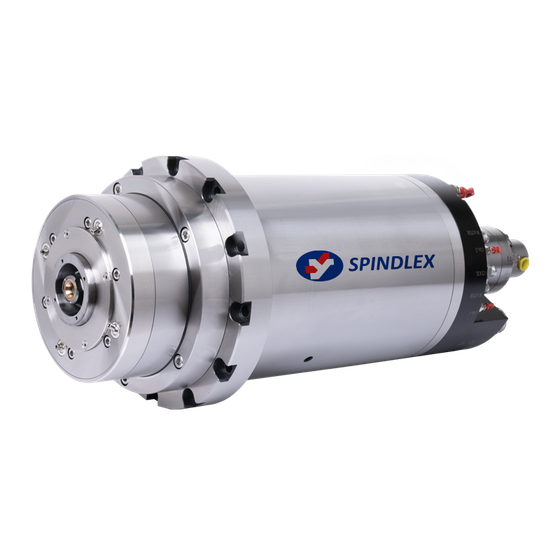

The "SY-210-24K-22.5kW" is a high-speed milling spindle equipped with an encoder, enhancing rotational control and positioning accuracy. It features a high-rigidity structure, with a multi-bearing design that strengthens rigidity and load capacity, suitable for heavy cutting. Additionally, the spindle runout accuracy is within 2μm, making it suitable for high-precision machining. Please feel free to contact us when you need assistance. 【Features】 ■ High-rigidity structure: Strengthened rigidity and load capacity with a multi-bearing design, suitable for heavy cutting ■ Ultra-high precision: Spindle runout accuracy within 2μm, suitable for high-precision machining ■ Equipped with an encoder: Improved rotational control and positioning accuracy ■ Temperature control: Water-cooled to suppress thermal displacement, stabilizing temperature and precision ■ Ceramic bearings: Equipped with wear resistance and low thermal expansion, maintaining spindle accuracy over a long period *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications (Excerpt)】 ■Housing Diameter (mm): φ210h6 ■Rotational Speed (RPM): 24,000 ■Output S1/S6 (kW): 18/22.5 ■Reference Rotational Speed (RPM): 3,000 ■Rated Voltage (V): 380 ■Motor Type: Asynchronous *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Our company was established in 1977, starting with the development of dedicated machines. As we progressed with in-house development, we deeply recognized the importance of spindles. In 1998, we introduced repair and manufacturing technology for high-frequency spindles from Europe, and in addition to repairing these high-frequency spindles, we have also been engaged in the research and development of built-in high-speed spindles. With the management philosophy of "Quality First," we aim to enhance our customers' competitiveness by continuously developing high-quality built-in high-speed spindles. Additionally, in addition to mass production, we provide specialized services for machine tool manufacturers with specific needs for built-in high-speed spindles, including design, development, assembly, and testing.
