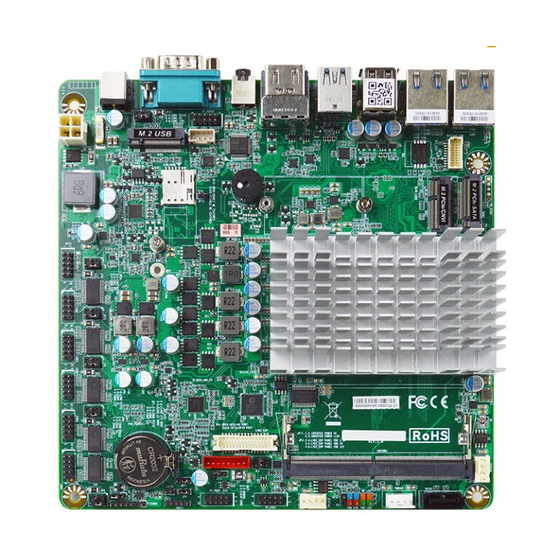

Jetway Mini-ITX standard industrial motherboard equipped with Intel Atom series N250/N150.
Features ● Equipped with Intel Atom Processor Series N250/N150 ● Type C DP x 1, HDMI x 2, LVDS/eDP x 1 ● 2.5GbE x 2 ● SATA III x 1, M.2 M-key NVMe x 1 ● M.2 E-key x 1, M.2 B-key x 1 ● USB 3.2 x 1, USB 3.2 Type-C x 1, USB 2.0 x 2, COM x 6
Inquire About This Product
basic information
【CPU】Equipped with Intel Atom N250/N150 Processor 【Supported Memory】DDR5 SODIMM x 1 slot (up to 32GB) (sold separately) 【Expansion Slots】M.2 3042/3052 B-Key x 1, M.2 2230 E-Key x 1, Nano SIM Card x 1 【Rear I/O】USB 3.2 x 1, USB 3.2 Type-C x 1, USB 2.0 x 2, 2.5GbE x 2, HDMI x 2, Type-C DP x 1, DC Jack x 1, COM x 1 【Pin Header I/O】USB 2.0 x 4, COM x 5, 8-bit GPIO, CPU Fan Header x 1, System Fan Header x 1 【Storage】SATA 6Gb/s x 1, M.2 2280 M-Key x 1 (NVMe) (sold separately) 【Input Power】DC 12–28V 【Operating Temperature】-20~60℃ 【Supported OS】Windows 10/11 (x64), Linux *This model does not include memory, storage, or OS.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（4）
| Model number | overview |
|---|---|
| 【MTX-TWL1-N2500010】 | Intel Atom N250, LDVS x 1,Type C DP x 1,HDMI x 2, 2.5GbE x 2,USB 3.2 x 1, USB 3.2 TypeC x 1, COM x 1,0～60℃ |
| 【MTX-TWL1-N2500210】 | Intel Atom N250, LDVS x 1,Type C DP x 1,HDMI x 2, 2.5GbE x 2,USB 3.2 x 1, USB 3.2 TypeC x 1, COM x 1,0～60℃, TPM2.0 |
| 【MTX-TWL1-N1500010】 | Intel Atom N150, LDVS x 1,Type C DP x 1,HDMI x 2, 2.5GbE x 2,USB 3.2 x 1, USB 3.2 TypeC x 1, COM x 1,0～60℃ |
| 【MTX-TWL1-N1500210】 | Intel Atom N150, LDVS x 1,Type C DP x 1,HDMI x 2, 2.5GbE x 2,USB 3.2 x 1, USB 3.2 TypeC x 1, COM x 1,0～60℃, TPM2.0 |
catalog（1）
Download All Catalogs
