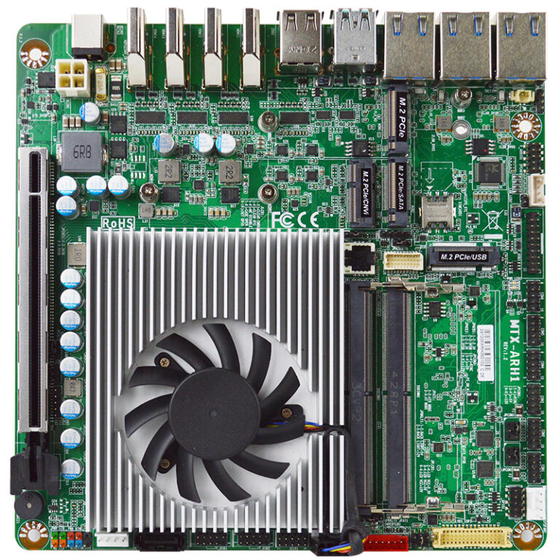

Jetway Mini-ITX standard industrial motherboard with Intel Core Ultra 5/7 installed.
Features ● Equipped with Intel Core Ultra 5 225H/7 255H ● DDR5 SODIMM x 2 slots (up to 96GB) ● LVDS/eDP x 1, HDMI x 4 ● 2.5GbE x 3 ● M-Key 2242 (PCIe 4.0 x4) x 1, M-Key 2242/2280 (PCIe 4.0 x4 + SATAIII) x 1, SATAIII x 1 ● DC 12–36V input
Inquire About This Product
basic information
【CPU】Equipped with Intel Core Ultra 5 225H/7 255H 【Supported Memory】DDR5 SODIMM x 2 slots (up to 96GB) (sold separately) 【Expansion Slots】M.2 3042/3052 B-Key x 1, M.2 2230 E-Key x 1, PCIe[x8] x 1, Nano SIM Card x 1 【Rear I/O】USB 3.2 x 2, USB 2.0 x 2, 2.5GbE x 3, HDMI x 4, DC Jack x 1 【Pin Header I/O】USB 3.2 x 2, USB 2.0 x 4, COM x 6, 8-bit GPIO, System Fan Header x 1 【Storage】SATA 6Gb/s x 1, M.2 2280 M-Key x 1 (NVMe), M.2 2242/2280 M-Key (NVMe) (sold separately) 【Input Power】DC 12–36V 【Operating Temperature】-20~60℃ 【Supported OS】Windows 10/11 (x64), Linux *This model does not include memory, storage, or OS.
Price information
Others
Delivery Time
Applications/Examples of results
Applications: machine control, automation systems, environmental monitoring systems, kiosk terminals, inspection devices, digital signage, gaming consoles, controllers, data loggers, and many others.
Line up（4）
| Model number | overview |
|---|---|
| 【MTX-ARH1-225H0020】 | Intel Core Ultra 5 225H, HDMI x 4, 2.5GbE x 3, USB 3.2 x 2, USB 2.0 x 2,-20～60℃ |
| 【MTX-ARH1-225H0220】 | Intel Core Ultra 5 225H, HDMI x 4, 2.5GbE x 3, USB 3.2 x 2, USB 2.0 x 2,-20～60℃, TPM2.0 |
| 【MTX-ARH1-255H0020】 | Intel Core Ultra 7 255H, HDMI x 4, 2.5GbE x 3, USB 3.2 x 2, USB 2.0 x 2,-20～60℃ |
| 【MTX-ARH1-255H0220】 | Intel Core Ultra 7 255H, HDMI x 4, 2.5GbE x 3, USB 3.2 x 2, USB 2.0 x 2,-20～60℃, TPM2.0 |
