By combining water jet processing and adhesive processing, we can flexibly accommodate the production of large and complex-shaped products.

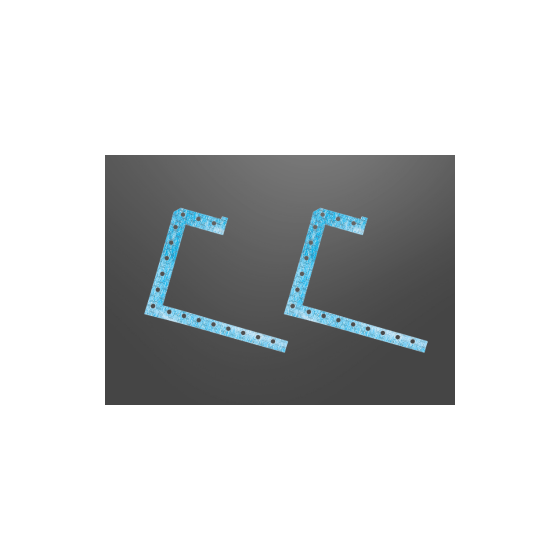

This is an example of producing a large and complex U-shaped gasket measuring 545mm x 709mm from a non-asbestos joint sheet "Valqua No. 6500" with a thickness of 3mm, based on the customer's drawing. The processing involved drilling 17 holes with a diameter of 21mm. Using our water jet cutting machine, we achieved high precision cutting directly from CAD data. Valqua No. 6500 is a non-asbestos general-purpose joint sheet made by combining organic and inorganic fibers with NBR and other materials. It demonstrates good sealing properties against general utility fluids and has a long track record in a wide range of applications, including petroleum refining, chemical plants, ships, and general piping. [Processing Features] - Proposal for cost reduction - Low cost and short delivery time without the need for a die - Direct processing from drawings - Easy repeat orders with data storage *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Daiko is a manufacturer specialized in processing various industrial products, including gaskets and packing. With industry-leading processing equipment, including one of Japan's largest water jet cutting machines, and a wide range of materials such as joint sheets, rubber, resin, and metal, we meet our customers' diverse needs. Leveraging the technology and experience we have cultivated over 50 years, we provide high-quality, short-lead-time, and low-cost products to contribute to solving our customers' challenges. To respond to our customers' varied needs, Daiko's production bases are equipped with various processing facilities. Among them, the water jet cutting machines, with a total of four installed at our Osaka headquarters and Tokyo branch, boast one of the largest scales in the country. The maximum processing range is W4,000 × L5,500 mm, allowing for the high-precision manufacturing of large-diameter gaskets and packing. By maximizing material efficiency, we achieve the provision of 'high quality at low cost.'
