Since a die is not needed, we promptly responded to the request for a single prototype.

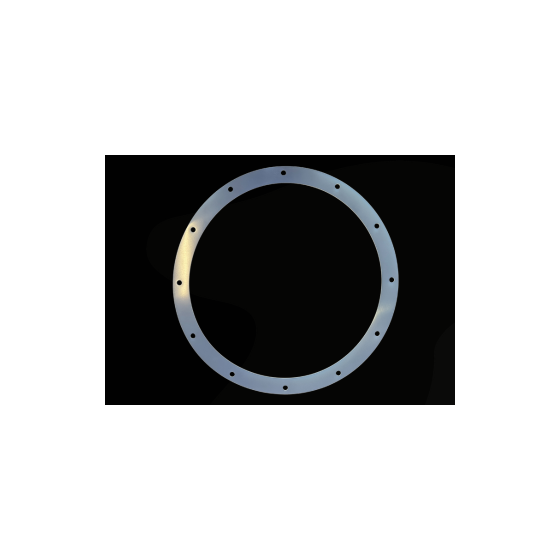

This is an example of producing a large-diameter flange gasket with an outer diameter of φ695mm and an inner diameter of φ595mm from a 3mm thick silicone rubber sheet based on the customer's drawing. The processing involved drilling 12 bolt holes of φ15mm on a P.C.D. of 655mm. Using our water jet cutting machine, we achieved high-precision cutting according to the data. Since no die was required, we were able to respond quickly to a request for a single prototype. Water jet cutting is suitable for processing elastic materials like rubber because it cuts with a high-pressure water stream. 【Processing Features】 ■ No die required, low cost, and short delivery time ■ Direct processing from drawings ■ High-quality cutting with no thermal impact ■ Easy repeat orders with data storage *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Daiko is a manufacturer specialized in processing various industrial products, including gaskets and packing. With industry-leading processing equipment, including one of Japan's largest water jet cutting machines, and a wide range of materials such as joint sheets, rubber, resin, and metal, we meet our customers' diverse needs. Leveraging the technology and experience we have cultivated over 50 years, we provide high-quality, short-lead-time, and low-cost products to contribute to solving our customers' challenges. To respond to our customers' varied needs, Daiko's production bases are equipped with various processing facilities. Among them, the water jet cutting machines, with a total of four installed at our Osaka headquarters and Tokyo branch, boast one of the largest scales in the country. The maximum processing range is W4,000 × L5,500 mm, allowing for the high-precision manufacturing of large-diameter gaskets and packing. By maximizing material efficiency, we achieve the provision of 'high quality at low cost.'
