Arrow Lake-S Core Ultra (Series 2) (Max TDP 125W), 4x DDR5-5600 Max 192GB

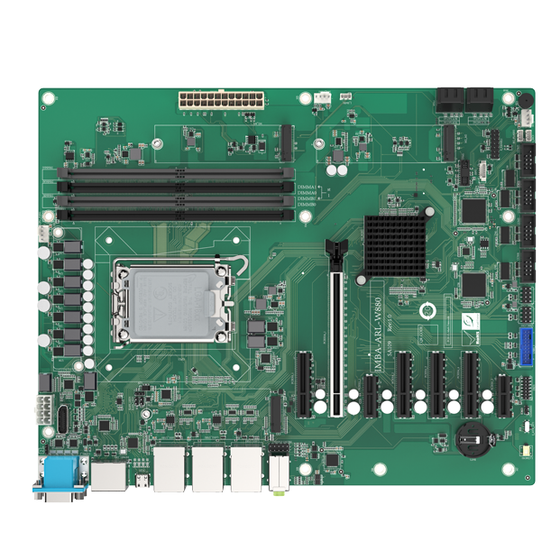

【IEI IMBA-ARL-W880 Features】 ■Dimensions: 244mm x 305mm ■Supports Arrow Lake-S Core Ultra (Series 2) (maximum TDP 125W) processors ■Supports independent displays with a maximum resolution of 4K via 1x HDMI 1.4, 2 x DP 1.4a, and 1 x USB4 ■4x DDR5-5600, maximum 192GB ■Expansion Slots ・1 x PCIe x16 with Signal Gen5 ・4 x PCIe x4 open-end Gen4 ・2 x PCIe x1 Gen4 ・1 x M.2 M Key (2280, PCIe x4) NVMe ・1 x M.2 M Key (2280, PCIe x2) NVMe ・1 x M.2 B key for IRIS2-2600 ■2 x 2.5 GbE LAN ■4 x SATA 6Gb/s, 4 x USB 2.0, 2 x USB 3.2 Gen1, 6 x USB 3.2 Gen2, 4 x RS-232, 2 x RS-232/422/485 ■Supports AT/ATX power modes
Inquire About This Product
basic information
Specifications ■CPU: Arrow Lake-S Core Ultra (Series 2) (Max TDP 125W) Processor ■Chipset: W880 ■Memory: 4xDDR5-5600 Max 192GB ■Ethernet: 2 x 2.5 GbE LAN ■Interfaces: 4 x SATA 6Gb/s, 4 x USB 2.0, 2 x USB 3.2 Gen1, 6 x USB 3.2 Gen2, 4 x RS-232, 2 x RS-232/422/485, 1 x HDMI 1.4, 2 x DP 1.4a, 1 x USB4 ■Operating Temperature: -10°C ~ 60°C ■Dimensions: 244mm x 305mm
Price range
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Factory and building automation / control systems / communication systems / monitoring systems
Line up（1）
| Model number | overview |
|---|---|
| IMBA-ARL-W880-R10 | ATX motherboard supports LGA1851 High-Performance Intel Core Ultra Processors (Series 2), DDR5, Quadruple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS |
