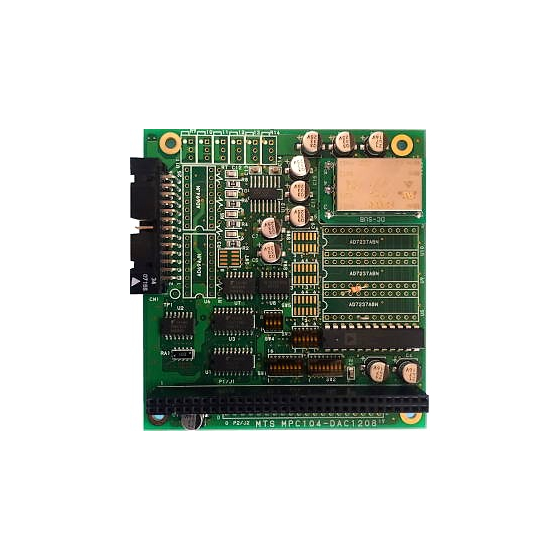

12-bit 8-channel DA converter board with PC-104 and Z80 bus.
◎ The DAC section adopts Analog Devices' AD7237. ◎ Space-saving board size of 90.1mm x 95.8mm. ◎ An operational amplifier (AD713 or OP482) is placed in the final stage of the analog output section. ◎ Equipped with a DC-DC converter, it can be used with a single 5V power supply. (The 4-20mA current source is supplied externally.) ◎ Can be connected to PC/104-CPU and our product MPCZ-16EX (Z80).
Inquire About This Product
basic information
D/A Converter: AD7237JN - Resolution: 12 bits - Linearity: 1/2 LSB - Conversion Time: 8 μS - Output Channels: 8 channels (2 basic + up to 6 optional) 0-10V, -5V to +5V, 0-5V - Reference Power Supply: 5V internal reference or external reference - Adjustment Section: None I/O Address: Occupied Port 32 (8 or 16-bit decode) Operating Voltage: +5V single power supply Current Consumption: 350mA (basic configuration) or 250mA (when using operational amplifier OP482) Operating Temperature Range: 0°C to 50°C Board Size: 90.1mm x 95.8mm Compatible Connector: Analog Output Section: OMRON XG4M-2630 standard included ◆ Options - 4-20 Option (up to 2CH) Output: 4-20mA or 0-20mA Adjustment Section: Zero adjustment volume, gain adjustment volume, offset adjustment volume The analog input source uses the DAC output. *Please supply the power for 4-20mA externally. - 2CH Expansion Option Up to 3 units (6CH) maximum
Price information
¥29,540 (excluding tax)
Price range
P2
Delivery Time
Applications/Examples of results
Industrial machinery, etc.
