SOSA-aligned 3U VPX graphics and GPGPU card (NVIDIA RTX PRO 5000 Blackwell GPU)

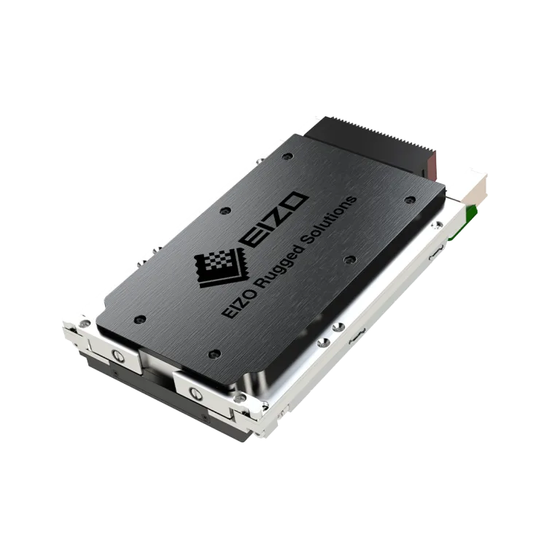

The Condor GR5SL-B5000 is a robust 3U OpenVPX video graphics/GPGPU card equipped with the advanced NVIDIA RTX PRO 5000 Blackwell GPU. It features 10,496 CUDA cores, 320 Tensor cores, and 80 RT cores, along with ECC-supported 24 GB GDDR7 memory (256-bit), providing high performance and efficiency for AI inference and edge computing. Connectivity: It integrates a Microchip PFX PCIe Gen 4 switch for high-speed connections and supports GPUDirect RDMA to reduce data transfer latency. Cooling: It offers both conduction cooling (VITA 48.2) and airflow-through (VITA 48.8) variations, with a new design that significantly improves thermal efficiency. This card also includes the 9th generation NVENC (supporting 4:2:2) and 6th generation NVDEC decoder, making it ideal for mission-critical environments.
Inquire About This Product
basic information
Form Factor/Cooling: 3U VPX. Supports conduction cooling (VITA 48.2) and airflow-through (AFT, VITA 48.8) Processor: NVIDIA RTX PRO 5000 Blackwell GPU Memory: 24 GB GDDR7 (ECC supported, 256-bit) Computing Power (GPGPU/AI): 10,496 CUDA cores, 320 Tensor cores, 80 RT cores Up to 1,824 FP4 AI TOPS, NVIDIA GPUDirect RDMA supported Supports CUDA, CUDA-X, OpenCL, Shader Model 6.8 H.265 (HEVC) / H.264 (MPEG4/AVC), AV1 hardware codec 9th generation NVENC encoder supporting 4:2:2 6th generation NVDEC decoder Connectivity: PCIe Gen 4 interface, equipped with Switchtec PFX PCIe Gen 4 switch Operating Temperature: -40℃ to +85℃ Durability: 40 g shock resistance, high vibration resistance OS: Windows or Linux (x86)
Price range
Delivery Time
Applications/Examples of results
Military Avionics Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance (ISR) Embedded Systems
