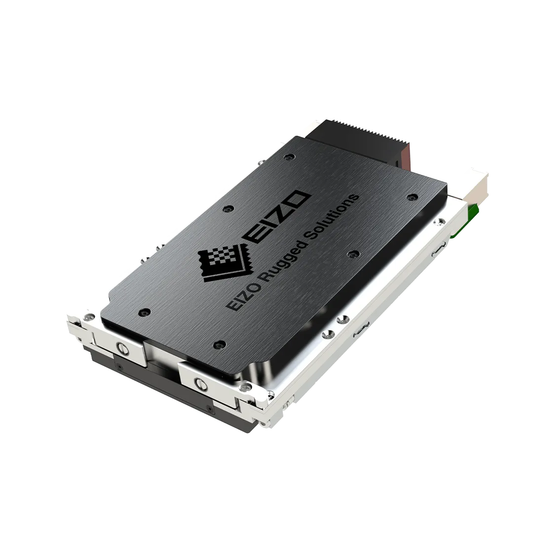

SOSA-compliant 3U VPX graphics and GPGPU card (NVIDIA RTX PRO 4000 Blackwell GPU)
The Condor GR5S-B4000 is a rugged video graphics/GPGPU card in the 3U OpenVPX standard, equipped with the cutting-edge NVIDIA RTX PRO 4000 Blackwell GPU. Performance: It features 7,680 CUDA cores and 240 Tensor cores, delivering exceptional performance in edge AI inference and real-time situational analysis. Memory: It is equipped with 16 GB of ECC-supported GDDR7 memory, ensuring reliability for mission-critical applications. Standards: Compliant with the SOSA technical standard, it provides interoperability and scalability for C5ISR and high-performance embedded computing (HPEC) applications. Connectivity: High-speed data transfer is achieved through PCIe Gen 4 switching and GPUDirect RDMA. Cooling: It supports both conduction cooling and airflow-through variations, maintaining stable operation even in harsh environments due to its new design. This card is the ideal solution for fields that demand extreme reliability and high computational power.
Inquire About This Product
basic information
Form Factor/Cooling: 3U VPX Form Factor. Supports VITA 48.2 conduction cooling and VITA 48.8 air flow through (AFT). Processor: NVIDIA RTX PRO 4000 Blackwell GPU. Memory: 16 GB GDDR7 (ECC supported, 256-bit interface). Computing Power: 7,680 CUDA cores, 240 Tensor cores, 60 RT cores. Up to 1334 FP4 AI TOPS. Connectivity: PCIe Gen 4 interface, equipped with Switchtec PFX PCIe Gen 4 switch. Data Transfer: Supports NVIDIA GPUDirect RDMA. Video: H.265/H.264/AV1 hardware codec, 9th generation NVENC (4:2:2 supported). Operating Temperature: Compliant with VITA 47.1 (−40°C to +85°C at card edge). Durability: Shock resistance 40 g, vibration resistance 0.1 g²/Hz. Power: 90W to 150W. OS: Windows or Linux.
Price range
Delivery Time
Applications/Examples of results
Military Avionics Surveillance Unmanned Aerial Vehicle Navy Intelligence, Surveillance, and Reconnaissance (ISR) Embedded Systems
