Fluids can be well mixed by using a helical flow channel inside a microfiber

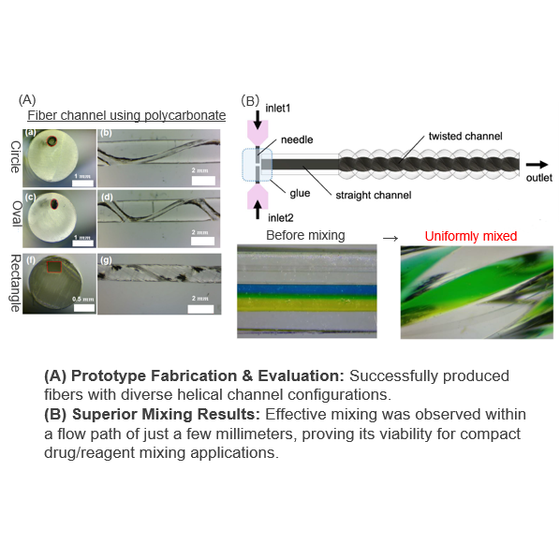

Conventional microfluidic devices are typically manufactured on flat substrates using lithography—a standard semiconductor fabrication technique. However, this traditional approach is largely limited to two-dimensional (planar) channel structures, making it difficult to create complex, three-dimensional fluid paths. To overcome these limitations, the inventors developed a Rotary Thermal Drawing System. This breakthrough device enables the production of hollow spiral microfibers with complex 3D structures. By leveraging this technology, the inventors have successfully designed a highly efficient Micromixer that uses internal helical channels to achieve uniform mixing of fluids, such as chemicals and reagents. Key Technical Advantages: ・Flexible design is possible: the fiber material (e.g. high‑strength material, elastic materials), diameter size, pitch, shape (liner or spiral), hollow or not, etc. ・Portable size of the equipment: Saving space and easy to handle.
Inquire About This Product
basic information
please contact us or refer to the PDF for more details.
Price range
Delivery Time
Applications/Examples of results
please contact us or refer to the PDF for more details.
